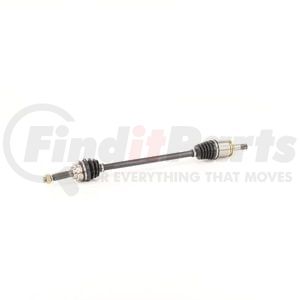

TrakMotive SB-9040XTT - Extended Travel CV Axle Shaft
- Part Number
- SB-9040XTT
- Manufacturer
- TRAKMOTIVE
- Description
-
Extended Travel CV Axle Shaft
details
$24649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
Extended Travel CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 44 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | N/A |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | N/A |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | N/A |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.71 |
| Overall Compressed Length (mm) | 780 |
| Overall Extended Length (in) | 32.87 |
| Overall Extended Length (mm) | 835 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Outboard Joint Boot Material | Thermoplastic |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00195013042731 |
Part Interchanges
Fits Vehicles
- Subaru Impreza (2004-2007)
- Subaru Forester (2003-2008)
