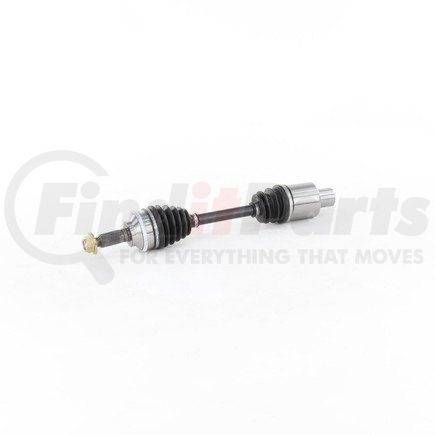

Name: TrakMotive FD-8099 CV Axle Shaft
SKU: fd8099
Price: 108.99 USD
Availability: InStock

CV Axle Shaft

ABS Ring Tooth Count	44
ABS Ring Type	Toothed
Abs Tone Ring Included	Yes
Axle Bolt Hex Size (mm)	N/A
Axle Bolt Length (mm)	N/A
Axle Bolt Thread Size	N/A
Axle Nut Head Type	Hex
Axle Nut Height (in)	.83
Axle Nut Height (mm)	22
Axle Nut Hex Size (in)	1.25
Axle Nut Hex Size (mm)	32
Axle Nut Included	Yes
Axle Nut Length (in)	1.33
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Thread Size	M22x1.5
Boot Material	Neoprene
Inboard Bolt Head Size (in)	N/A
Inboard Bolt Head Size (mm)	N/A
Inboard Bolt Head Type	N/A
Inboard Bolt Length (in)	N/A
Inboard Bolt Length (mm)	N/A
Inboard Bolt Thread Size	N/A
Inboard Joint Type	Female
Inboard Shaft Connection Style	Female
New Or Remanufactured	New
Number of Bolt Holes	0
Number Of Inboard Joint Bolt Holes	0
Number Of Inboard Shaft Bolts	0
Number Of Inboard Splines	35
Number Of Outboard Joint Bolt Holes	0
Number Of Outboard Shaft Bolts	0
Number Of Outboard Splines	28
Outboard Bolt Head Size (in)	N/A
Outboard Bolt Head Size (mm)	N/A
Outboard Bolt Head Type	N/A
Outboard Bolt Length (in)	N/A
Outboard Bolt Length (mm)	N/A
Outboard Joint Bolt Thread Size	N/A
Outboard Joint Type	Conventional
Outboard Shaft Connection Style	Conventional
Overall Compressed Length (in)	22.28
Overall Compressed Length (mm)	566
Axle Nut Socket Size	32
Grade Type	Premium
Inboard Joint Boot Material	Neoprene
Outboard Joint Boot Material	Neoprene
