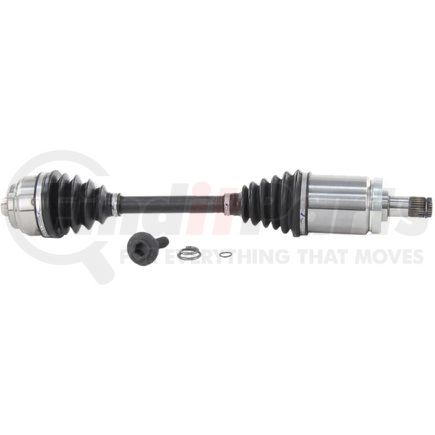

TrakMotive BM-8129 - AAR CV Axle Shaft
- Part Number
- BM-8129
- Manufacturer
- TRAKMOTIVE
- Description
-
AAR CV Axle Shaft
details
$17099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
AAR CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 0 |
| ABS Ring Type | N/A |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 84 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Head Type | N/A |
| Axle Nut Height (in) | N/A |
| Axle Nut Height (mm) | N/A |
| Axle Nut Hex Size (in) | N/A |
| Axle Nut Hex Size (mm) | N/A |
| Axle Nut Included | No |
| Axle Nut Length (in) | N/A |
| Axle Nut Length (mm) | N/A |
| Axle Nut Locking Type | N/A |
| Axle Nut Thread Size | N/A |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 37 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.09 |
| Overall Compressed Length (mm) | 561 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084044518 |
Part Interchanges
Fits Vehicles
- BMW 640i Gran Coupe (2019)
- BMW 650i Gran Coupe (2019)
- BMW Alpina B6 xDrive Gran Coupe (2015-2019)
- BMW 640i xDrive (2014-2018)
- BMW 650i xDrive (2012-2018)
- BMW 528i xDrive (2012-2016)
- BMW 550i xDrive (2011-2016)
- BMW 535i xDrive (2011-2016)
