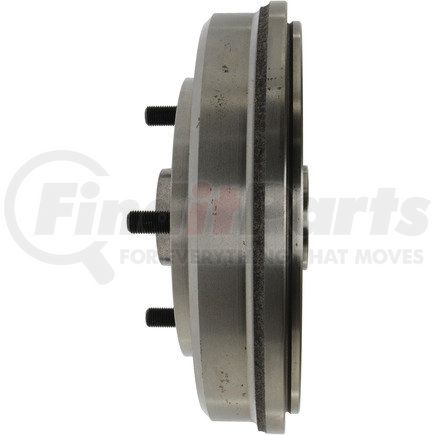

Centric 123.42008 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 5.682 |
| Weight [cntrc] Lbs | 12.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Stud Thread Pitch [cntrc] Mm | 1.25 |
| Hub Hole / Register [cntrc] Mm | 60.700 |
| Hub Hole / Register [cntrc] In | 2.390 |
| Height [cntrc] Mm | 82.000 |
| Height [cntrc] In | 3.228 |
| Friction Surface Width [cntrc] Mm | 41.500 |
| Friction Surface Width [cntrc] In | 1.634 |
| Product Grade [cntrc] | Standard |
| Stud Thread Size | 12 MM |
| Maximum Brake Diameter (Discard) | 204.500 MM |
| Maximum Brake Diameter (Discard) | 8.051 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 236.000 MM |
| Outside Diameter | 9.291 IN |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 203.200 MM |
| Nominal Drum Diameter | 8.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890051657 |
Part Interchanges
CENTRIC 123.42008 Cross Reference
We have 4 alternatives for the 123.42008 by CENTRIC:
Fits Vehicles
- Nissan Pulsar NX (1983-1986)
- Nissan Sentra (1983-1985)
