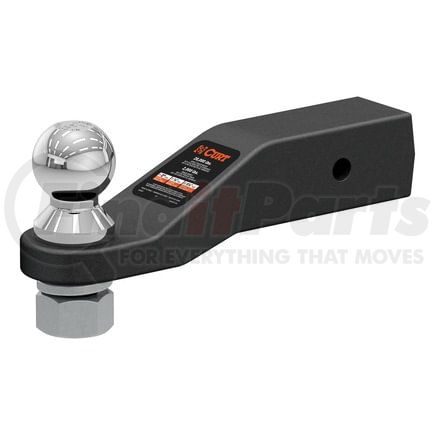

CURT Manufacturing 45371 - Loaded Magnum Forged Ball Mount
- Part Number
- 45371
- Manufacturer
- CURT MANUFACTURING
- Description
-
Loaded Magnum Forged Ball Mount
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CURT MANUFACTURING part description
Product Description
Loaded Magnum Forged Ball Mount
Features & Benefits
- Rated to 20,000 lbs. gross trailer weight and 2,000 lbs. tongue weight
- Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
- Factory-torqued CURT trailer ball accepts a 2-5/16" coupler
- Constructed from solid, forged steel for superior strength
- 2" drop for precise trailer leveling
- Limited lifetime warranty (one-year finish, one-year parts)
- Rated To 20000 lbs. Gross Trailer Weight And 2000 lbs. Tongue Weight
- Fits Trailer Hitches With A 2-1/2 in. X 2-1/2 in. Receiver Tube Opening
- Factory-Torqued CURT Trailer Ball Accepts A 2-5/16 Coupler
- Constructed From Solid Forged Steel For Superior Strength
- 2 In. Drop For Precise Trailer Leveling
- Protected By A Highly Durable Carbide Powder Coat Finish
- Trailer Ball Features A Polished Chrome-Plated Finish
- 5/8 hitch pin & clip for secure mounting in receiver tube
- 5/8 hitch pinandclip for secure mounting in receiver tube
- Limited Lifetime Warranty (One-Year Finish; One-Year Parts)
Rated to 20,000 lbs. gross trailer weight and 2,000 lbs. tongue weight
Product Attributes
| Drop | 2 IN |
| Style | Fixed |
| WARNING CA Proposition 65 | No |
| BALL DIAMETER | 2-5/16 IN |
| Box Height In Inches - Xa | 0 |
| Box Length In Inches - Xa | 0 |
| Box Width In Inches - Xa | 0 |
| Container Cases Qty - XA | 1710 |
| Container Load Type - XA | PALLETS |
| Container Pallet Qty - XA | 19 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 1710 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 2128 |
| Finish - Xa | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (gtw) | 20,000 LBS |
| Item Class - Xa | OBS |
| Item Height - Xa | 3.700 |
| Item Length - Xa | 13.400 |
| Item Width - Xa | 6.700 |
| Master Case Height Inches - XA | 3.700 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 13.400 |
| Master Case Qty - XA | 1 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 1.000 |
| Master Case Width Inches - XA | 6.700 |
| Material - Xa | FORGED STEEL |
| Mount Type Description - Xa | Not Applicable |
| Pallet Case Per - XA | 90 |
| Pallet Case Per Layer - XA | 18 |
| Pallet Cases Per - XA | 90 |
| Pallet Cases Per Layer - XA | 18 |
| Pallet Layer of Cases - XA | 5 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 25.000 |
| Pallet Total Weight Per - XA | 112.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 21.400 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Receiver Tube Size | 2-1/2 IN |
| Retail Height - Xa | 6.700 |
| Retail Length - Xa | 3.700 |
| Retail Width - Xa | 13.400 |
| Sales Family Code - Xa | ACCES |
| Sales Family Description - Xa | ACCESSORIES |
| Sales Group Description - Xa | BALL MOUNT |
| Shank Diameter | 2-1/2 IN |
| Shank Type | Solid |
| Shipping Weight - Xa | 21.400 |
| Side Application Type Description - Xa | Not Applicable |
| Tariff 301 - Xa | Yes |
| Title | Loaded Forged Ball Mount with 2-5/16" Ball (2-1/2" Shank, 20,000 lbs, 2" Drop) |
| Tongue Weight (tw) | 2,000 LBS |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314050895 |
