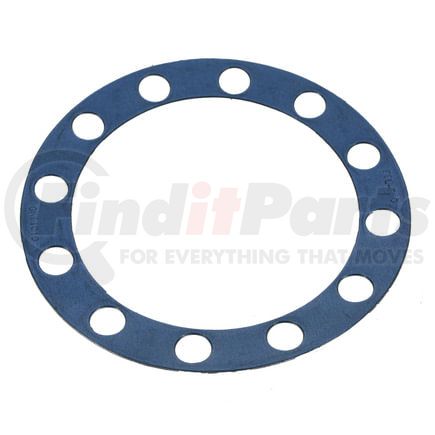

National Seals GKT1010 - GASKET OIL SEAL
- Part Number
- GKT1010
- Manufacturer
- NATIONAL SEALS
- Description
-
GASKET OIL SEAL
details
$599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NATIONAL SEALS part description
Product Description
Drive Axle Shaft Flange Gasket
Application Summary
Eaton; Meritor RA
Features & Benefits
- Unbeatable Protection for Wheel End Systems from the The Leader in Wheel End Technology™
- National® axle flange gaskets feature Fel-Pro® sealing technology
- National(R) axle flange gaskets feature Fel-Pro(R) sealing technology
- Aramid fiber and PTFE coated gasket provides excellent fluid sealability and superior crush resistance
- Anti-stick coating eliminates sticking & clean-up
- Temperature Range: -400°F to 550°F; -240°C to 288°C
- Temperature Range: -400degF to 550degF; -240degC to 288degC
Product Attributes
| Bolt Hole Quantity | 12 |
| Outside Diameter | 6.065 IN |
| Outside Diameter | 154.1 MM |
| Inside Diameter | 4.505 IN |
| Inside Diameter | 114.4 MM |
| Shape | Round |
| Material | Laminated solid steel core |
| Part Description | Axle Shaft Flange Gasket |
| Mounting Hole Diameter | 0.531 IN |
| Mounting Hole Diameter | 13.5 MM |
| Type | 3 |
| Bolt Circle Diameter | 5.235 IN |
| Bolt Circle Diameter | 133.0 mm |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8484900000 |
| Harmonized Tariff Code (HTS) | 8484900000 |
| Canadian Harmonizing Tariff Code | 8484900000 |
| UPC | 00614046946958 |
Part Interchanges
