GATES 32012 Part Description
Manufacturer
Product Description

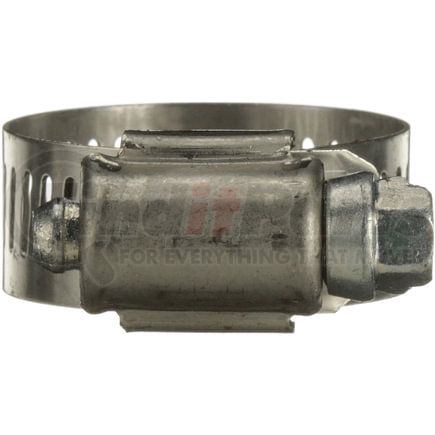

Stainless Steel Hose Clamp
Features & Benefits
- Durable 200 series stainless steel band and screw housing
- One-piece screw housing is interlocked onto band for extra strength
- Cadmium-plated solid head forged from one piece of steel
- Hex-shaped screw has a deep slot that tightens with a screwdriver, nut driver or socket wrench
- NOTE: Tighten Minex clamps to minimum 14-16 in. lb. (maximum of 20 in. lb.)
- NOTE: Super Hex clamps to minimum 25-35 in. lb. (maximum of 50 in. lb.)
GATES 32012 Specifications
Product Attributes
| Adjustment Type | Stainless Steel (Standard) |
| Hose Clamp Size | 12 |
| Hose Minimum Inside Diameter | .625 IN |
| Hose Maximum Inside Diameter | .75 IN |
| Minimum Clamping Length | .5 IN |
| Maximum Clamping Length | 1.25 IN |
| Band Width | .5 IN |
| Screw Type | Deep Slot Hex-Head |
| Recommended Torque | 25-35 PPI |
| Maximum Torque | 50 IA |
| Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Band Width | 13 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053021639 |
| VMRS Code | 053008020 |
| UNSPSC | 31162900 |
GATES 32012 Cross References
| Brand | Part Number |
|---|---|
| 74000012, GT32012 | |
| ACDelco | 32012C |
| Aero-Seal | 10012, M12S |
| Amgauge | B12H |
| CONTINENTAL AG | 51012 |
| Carquest | 1012 |
| Dayco | 91012 |
| Goodyear | 51012 |
| Ideal Hy-Gear | 5012, 5012V, 5212, 5412, 5512, 6412 |
| Ideal Tridon | 5712190, 670040012, 670040012051 |
| Interstate | 2012 |
| Murray Gold Seal | GS 10 |
| NAPA | 505-1013, 705-1013, 705-1133, 705-1186 |
| NAPA Belts/Hose | 32012 |
| Norton | 013-12 |
| Robertshaw | 2012 |
| Stant | SC12 |
| Sterling | H112 |
| Sure-Tite | 12, 12H, C12P |
| Velvac | 022312 |
