Centric 320.47021F - Centric GCX Rotor with Full Coating
$6749
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

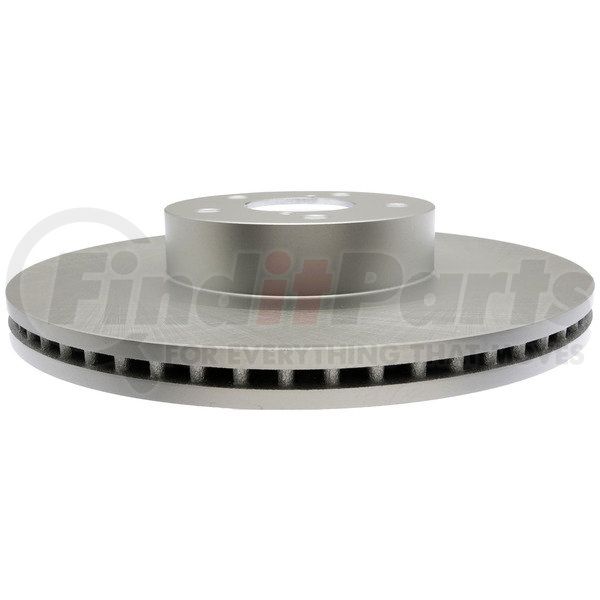

Centric GCX Rotor with Full Coating
Product Attributes
| Hat Id [cntrc] In | 5.071 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 7.950 |
| Misc Holes [cntrc] | 2 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] Mm | 128.800 |
| Weight [cntrc] Lbs | 17.500 |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 24.000 MM |
| Nominal Thickness | 0.945 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 56.700 MM |
| Overall Height | 2.232 IN |
| Outside Diameter | 293.500 MM |
| Outside Diameter | 11.555 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 58.000 MM |
| Center Hole Diameter | 2.283 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.700 MM |
| Stud/Lug Hole Diameter | 0.500 IN |
Fits Vehicles
- Toyota GR86 (2022-2023)
- Subaru XV Crosstrek (2013-2015)
- Subaru Baja (2004-2006)
- Subaru Crosstrek (2016-2017)
- Toyota 86 (2017-2020)
- Subaru Impreza (2009-2014)
- Scion FR-S (2013-2016)
- Subaru Legacy (2006-2014)
- Subaru Outback (2005-2014)
- Subaru BRZ (2013-2020, 2023)
- Subaru WRX (2012-2014)
- Subaru Forester (2009-2018)
