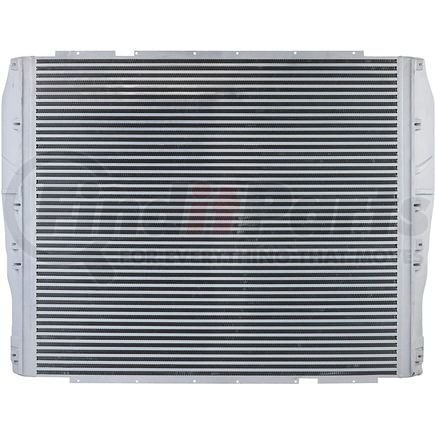

Name: Reach Cooling 61-1551 Charge Air Cooler
SKU: 611551
Price: 928.99 USD
Availability: InStock

REACH COOLING part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Charge Air Cooler

Application Summary

Kenworth:2008 T300/2008-2014 T370/ W900; Peterbilt:2008-2014 330/2008-2010 335/2007-2010 340/2011-2013 365/ 367/2007 378/2007-2008 385

Features & Benefits

Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.

Product Attributes

Core Thickness	2 IN
Inlet Outside Diameter	102 MM
Core Length	947.74 MM
Outlet Outside Diameter	4 IN
Core Height	838 MM
Tank Material	Aluminum
Inlet Location	Upper Left
Core Material	Aluminum
Outlet Location	Upper Right
