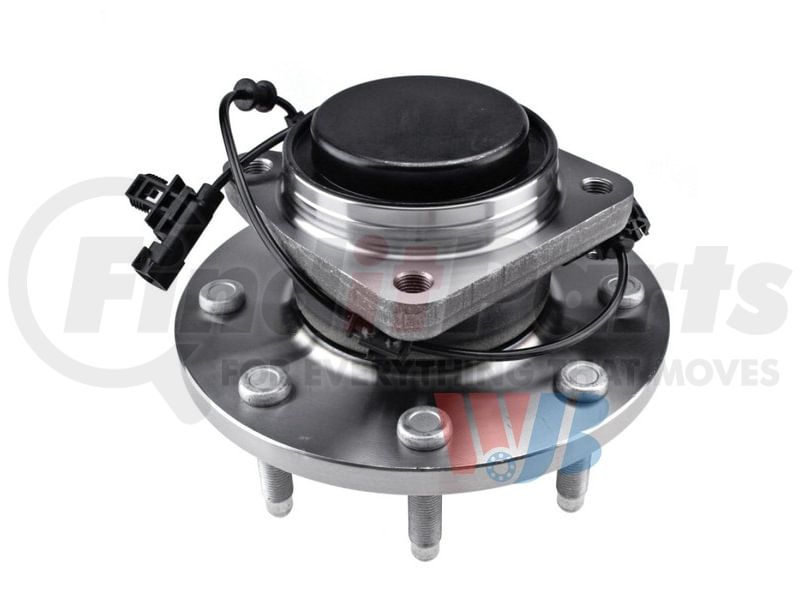

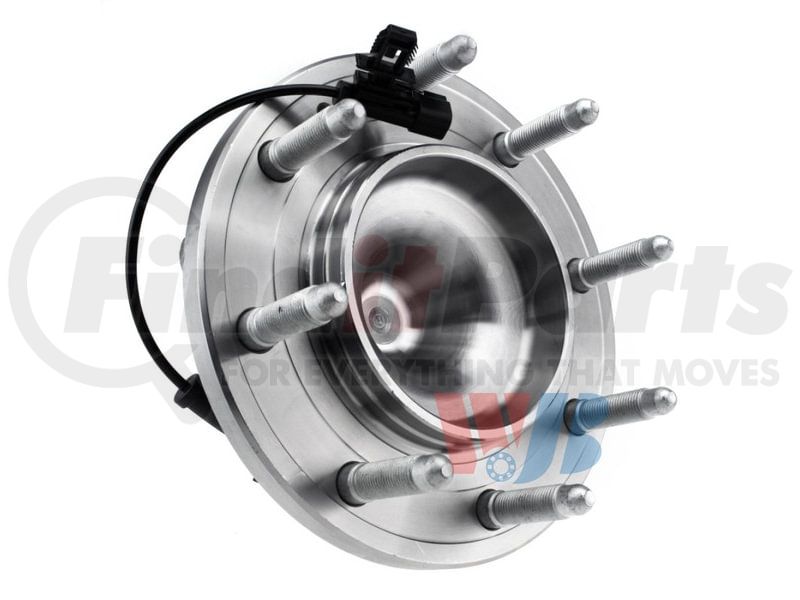

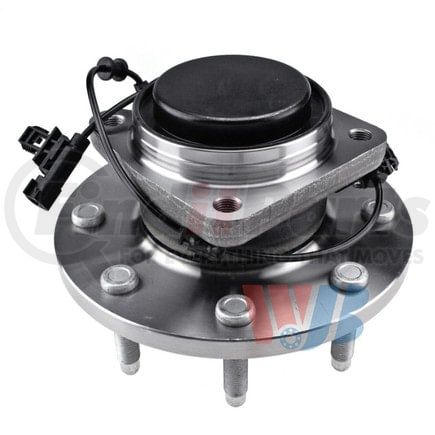

(888) 312-8812 Login SignupWJB WA620301 Hub Assembly
Tap to view 2 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WJB WA620301 Part Description
Manufacturer
Product Description
Wheel Bearing and Hub Assembly
Features & Benefits
- Fitment and function are ensured by precision machining and measurements with rigorous testing and inspections of material and components
- Designed to meet stringent fatigue requirements in order to reduce premature failure
- Reinforced seal design material allows for optimal performance in harsh environments
- Engineered to undergo heat treatment and cold-forming processes that harden the surface ensuring high-temperature resistance and durability
- Pre-installed speed sensors automatically sync to the vehicle’s anti-lock braking system and provide accurate speed data (where applicable)
Hub Assembly
WJB WA620301 Specifications
Product Attributes
| Flange Diameter | 218.9 MM |
| Flange Offset | 2.9 IN |
| Flange Offset | 73.9 MM |
| Flange Shape | TRAPAZOID |
| Hub Centerbore Diameter (in) | 7.09 IN |
| Hub Centerbore Diameter (mm) | 180 MM |
| Hub Pilot Diameter | 5 IN |
| Hub Pilot Diameter | 114.0 MM |
| Lug Bolt Thread Size | M14-1.5 |
| New Or Remanufactured | New |
| ABS Connector Shape | Linear |
| ABS Ring Type | Tone Ring |
| Anti-Lock Brake Sensor Included | Yes |
| Bearing Type | Tapered |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.55000000000000004 IN |
| Flange Bolt Size (mm) | 14 MM |
| Flange Bolt Thread Size | M14-1.5 |
| Flange Diameter | 8.6999999999999993 IN |
| Number Of Abs Sensor Ring Teeth | 48 |
| Number Of Flange Bolts Included | 8 |
| Number Of Lug Bolts Included | 8 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Spline Quantity | N/A |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 24.8 In |
| Bolt Circle Diameter | 7.087 IN |
| Bolt Circle Diameter | 180.0 MM |
| Brake Pilot Diameter | 126.9 MM |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 124.0 MM |
| Wheel Stud Quantity | 8 |
Additional Information
| Warranty Time | 12 |
| Warranty Distance | 12000 |
| Warranty Time UOM | MO |
| Warranty Distance UOM | MI |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| UPC | 00789120117118 |
