Autolite 5923 - Autolite 5923 Copper Resistor Spark Plug
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
AUTOLITE part description
Product Description

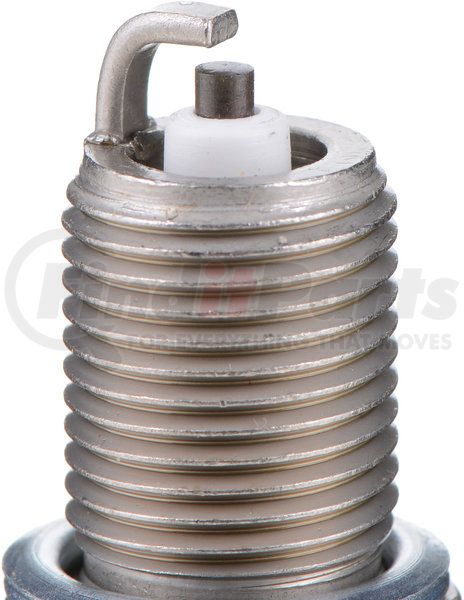

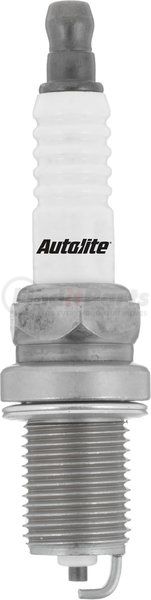

Autolite 5923 Copper Resistor Spark Plug
Features & Benefits
- One-Piece terminal stud provides a reliable high voltage electrical connection
- The copper core center electrode aids in thermal control and improves resistance to fouling.
- High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
- Its specially engineered high nickel alloy center and ground electrode provides extended life.
- Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
- The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
- Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.
- High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
- 2 year limited warranty
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.889 MM |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| 9608 | Standard |
| 9805 | Mid Projection |
| Washer Included | Yes |
| Grade Type | Regular |
| Pre-Gap Size | 0.035 IN |
| Hex Size | 5/8 IN |
| Manufacturer Heat Range | 10 |
| 9459 | Yes |
| 9507 | Hex |
| 9746 | No |
| Reach | 19.049999999999997 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100270047 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Polaris Ranger 500 (2017-2018)
- Polaris Sportsman 450 HO Utility Edition (2017-2018)
- Polaris ACE 500 (2017-2018)
- Polaris Sportsman 450 HO EPS (2016-2018)
- Polaris Sportsman 450 HO (2016-2018)
