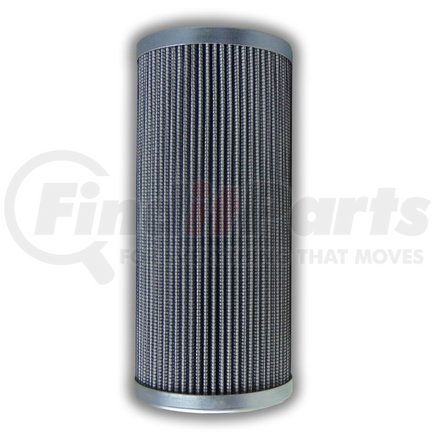

MAIN FILTER MF0430231 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 300157
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430231 replaces OEM 300157 by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 2.953 |
| Inide Diameter Top | 1.772 |
| Outside Diameter Bottom | 2.953 |
| BPVS Setting PSI | 29 |
| Collapse Pressure | 232 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 33.4901215 |
| Filter Area sq in | 342 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/9.9 |
| Beta Ratio 2 | 1000/12.4 |
| Micron 1 | 10 |
Features & Benefits
- Interchange/replacement for OEM INTERNORMEN p/n 300157
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0430231 replaces OEM 300157 by INTERNORMEN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Main Filter MF0430231 replaces OEM 300157 by INTERNORMEN and is compatible in fit, form and function.
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
MAIN FILTER MF0430231 Specifications
Product Attributes
| Handle | No |
| Micron Rating | 10 |
| Wrap | No |
| Product Media | Glass |
| Bypass | Yes |
| Height (in.) | 6.53 |
| Outside Diameter (Bottom) | 2.95 in. |
| Inside Diameter (Top) | 1.77 in. |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Collapse Pressure | 232 |
| BPVS Setting (PSI) | 29 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Outside Diameter (Top) | 2.95 in. |
| Beta Ratio 1 | 200/9.9 |
| Filter Area (sq. in.) | 342 |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 2 | 1000/12.4 |
| Dust Holding Capacity | 33.49 grams |
| Gasket Material | Viton |
MAIN FILTER MF0430231 Part Interchanges
| Brand | Part Number |
|---|---|
| Internormen | 300157 |
MAIN FILTER MF0430231 Cross References
We have 1 alternatives for the MF0430231 by MAIN FILTER:
