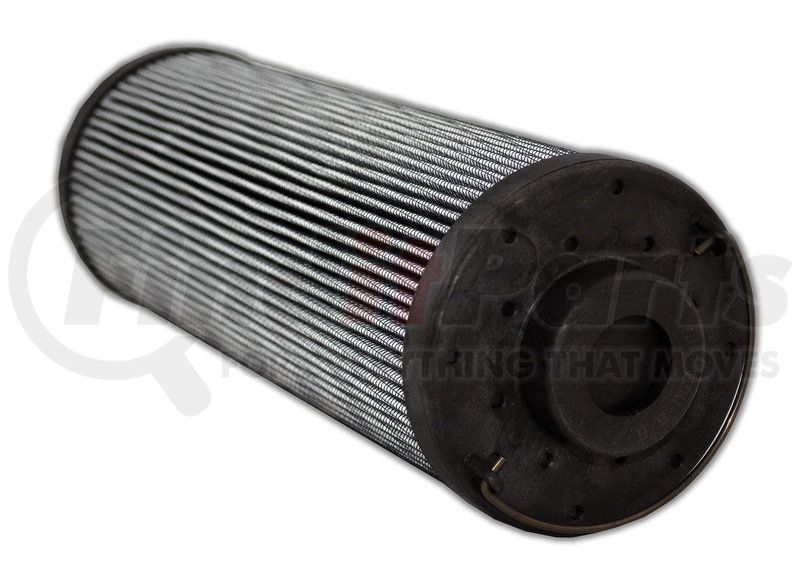

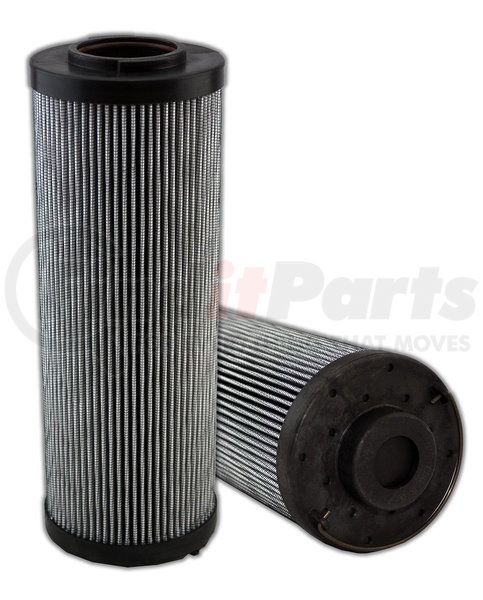

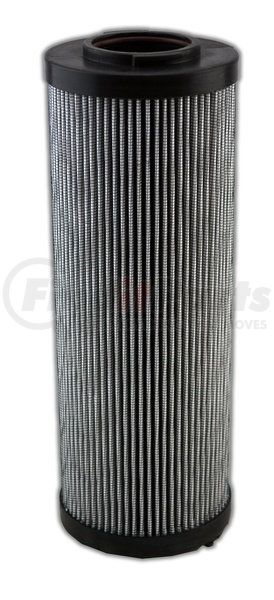

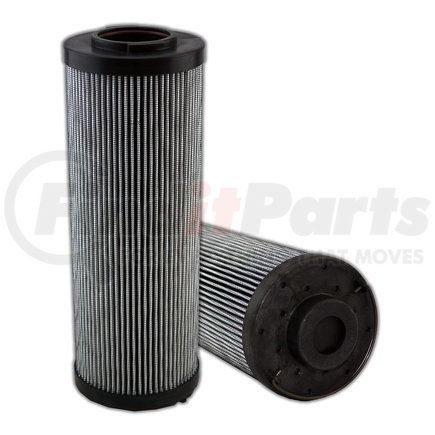

Name: Main Filter MF0834988 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0834988
Price: 101.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.721
Outside Diameter Bottom	3.721
Inside Diameter Bottom	1.898
BPVS Setting PSI	44
Collapse Pressure	435
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	66.28513
Filter Area sq in	896
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM HYDAC/HYCON p/n 01263003
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0834988 replaces OEM 01263003 by HYDAC/HYCON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

Features & Benefits

Interchange/replacement for OEM HYDAC/HYCON p/n 01263003
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0834988 replaces OEM 01263003 by HYDAC/HYCON and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	10.82
Handle	Yes
Bypass	Yes
Wrap	No
Collapse Pressure	435
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Micron Rating	3
Filter Area (sq. in.)	896
Dust Holding Capacity	66.29 grams
BPVS Setting (PSI)	43.5
Minimum Operating Temperature	-13 Deg Fahrenheit
Flow Direction	Outside-In
Beta Ratio 2	1000/4.5
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Top)	3.72 in.
Product Media	Glass

MAIN FILTER MF0834988 Cross Reference

We have 1 alternatives for the MF0834988 by MAIN FILTER:

HYDAC 01263003
