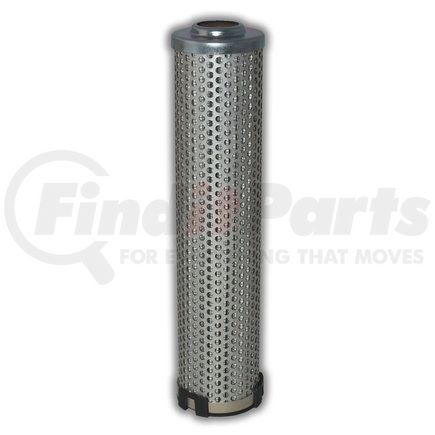

(888) 312-8812 Login SignupMAIN FILTER MF0600563 Aftermarket Replacement Hydraulic Filter with 20 Micron Rating, Glass, Outside-In Flow
MSRP: $44.08
$3949
Save $4.59
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
MAIN FILTER MF0600563 Part Description
Manufacturer
Features & Benefits
- Interchange/replacement for OEM WIX p/n R94C25GV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0600563 replaces OEM R94C25GV by WIX and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 1.791 |
| Inide Diameter Top | 0.807 |
| Outside Diameter Bottom | 1.791 |
| BPVS Setting PSI | 36 |
| Collapse Pressure | 145 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 16.3125875 |
| Filter Area sq in | 167 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Beta Ratio 2 | 1000/26.6 |
| Micron 1 | 25 |
Features & Benefits
- Interchange/replacement for OEM WIX p/n R94C25GV
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0600563 replaces OEM R94C25GV by WIX and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
MAIN FILTER MF0600563 Specifications
Product Attributes
| Handle | Yes |
| Wrap | Yes |
| Height (in.) | 7.83 |
| Bypass | Yes |
| Micron Rating | 20 |
| Product Media | Glass |
| Outside Diameter (Top) | 1.79 in. |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| BPVS Setting (PSI) | 36.2999999999999 |
| Collapse Pressure | 145 |
| Inside Diameter (Top) | 0.81 in. |
| Outside Diameter (Bottom) | 1.79 in. |
| Filter Area (sq. in.) | 167 |
| Gasket Material | Viton |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/20.7 |
| Dust Holding Capacity | 16.31 grams |
| Beta Ratio 2 | 1000/26.6 |
MAIN FILTER MF0600563 Part Interchanges
| Brand | Part Number |
|---|---|
| Wix | R94C25GV |
MAIN FILTER MF0600563 Cross References
We have 1 alternatives for the MF0600563 by MAIN FILTER:
