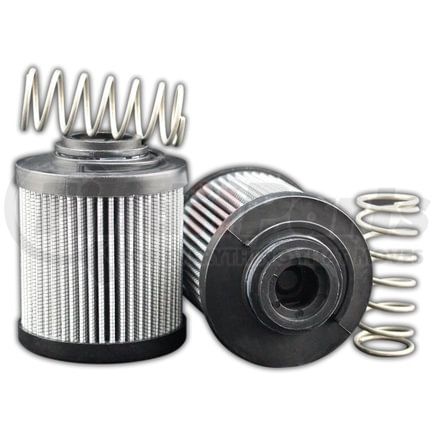

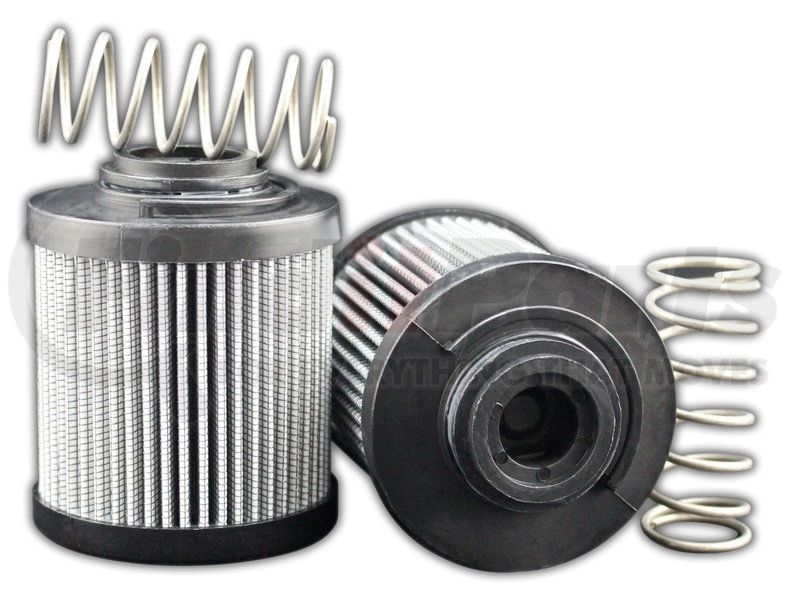

Name: Main Filter MF0599635 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0599635
Price: 32.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.756
Inide Diameter Top	1.161
Outside Diameter Bottom	2.756
BPVS Setting PSI	25
Collapse Pressure	44
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	9.49716
Filter Area sq in	128
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM WIX p/n R17C03GB
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0599635 replaces OEM R17C03GB by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Built using Quality Components with strict quality control.
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM WIX p/n R17C03GB
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0599635 replaces OEM R17C03GB by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Height (in.)	3.47
Handle	Yes
Product Media	Glass
Micron Rating	3
Wrap	No
Bypass	Yes
Outside Diameter (Top)	2.76 in.
Inside Diameter (Top)	1.16 in.
Outside Diameter (Bottom)	2.76 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Collapse Pressure	44
Maximum Operating Temperature	248 Deg Fahrenheit
BPVS Setting (PSI)	24.7
Fluid Type	HH / HL / HM / HV
Beta Ratio 2	1000/4.5
Filter Area (sq. in.)	128
Beta Ratio 1	200/3
Flow Direction	Outside-In
Gasket Material	Viton
Dust Holding Capacity	9.5 grams

Part Interchanges

Wix R17C03GB

MAIN FILTER MF0599635 Cross Reference

We have 1 alternatives for the MF0599635 by MAIN FILTER:

WIX R17C03GB
