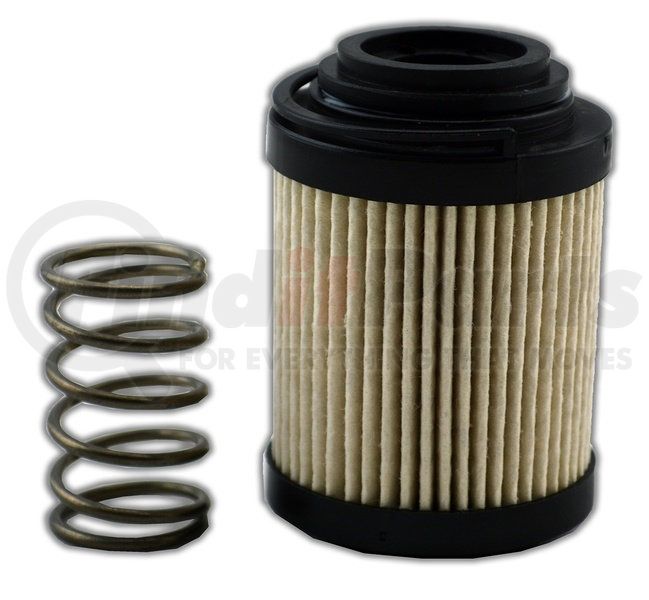

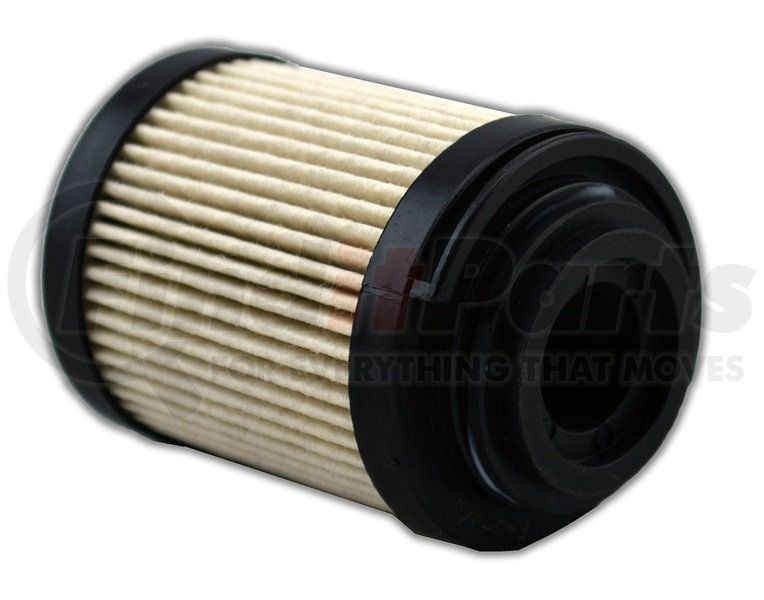

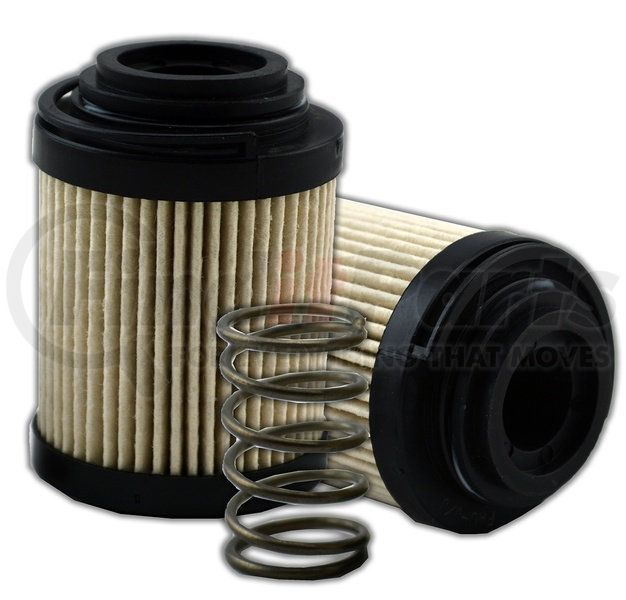

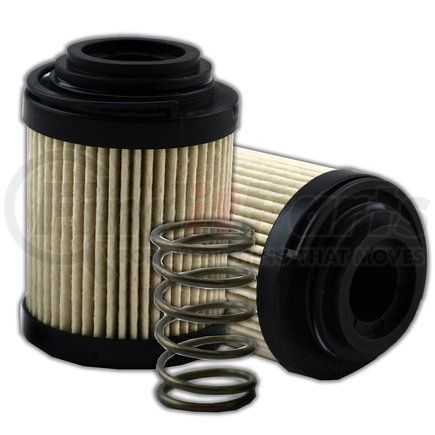

Name: Main Filter MF0599603 Aftermarket Replacement Hydraulic Filter with 10 Micron Rating, Cellulose, Outside-In Flow
SKU: mf0599603
Price: 21.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.047
Inide Diameter Top	0.965
Outside Diameter Bottom	2.047
BPVS Setting PSI	25
Collapse Pressure	44
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	2.4304
Filter Area sq in	61
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	2/10
Micron 1	10

Features & Benefits

Interchange/replacement for OEM WIX p/n R16C10CB
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0599603 replaces OEM R16C10CB by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Main Filter MF0599603 replaces OEM R16C10CB by WIX and is compatible in fit, form and function.

Features & Benefits

Interchange/replacement for OEM WIX p/n R16C10CB
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0599603 replaces OEM R16C10CB by WIX and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Micron Rating	10
Wrap	No
Product Media	Cellulose
Bypass	Yes
Handle	Yes
Height (in.)	2.95
Inside Diameter (Top)	0.97 in.
BPVS Setting (PSI)	24.7
Collapse Pressure	44
Outside Diameter (Top)	2.05 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Bottom)	2.05 in.
Dust Holding Capacity	2.43 grams
Gasket Material	Viton
Flow Direction	Outside-In
Filter Area (sq. in.)	61
Beta Ratio 1	2/10
Fluid Type	HH / HL / HM / HV

Part Interchanges

Wix R16C10CB

MAIN FILTER MF0599603 Cross Reference

We have 1 alternatives for the MF0599603 by MAIN FILTER:

WIX R16C10CB
