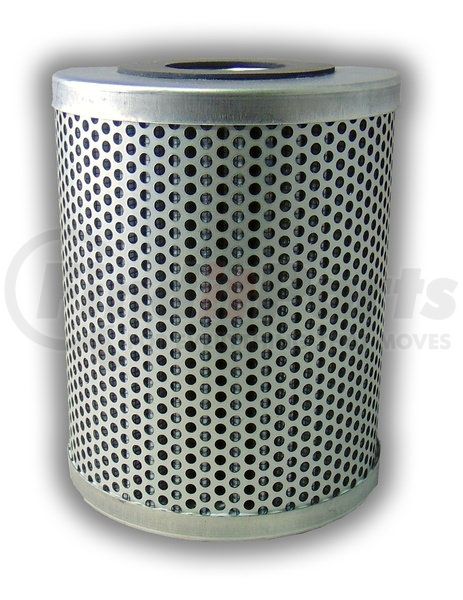

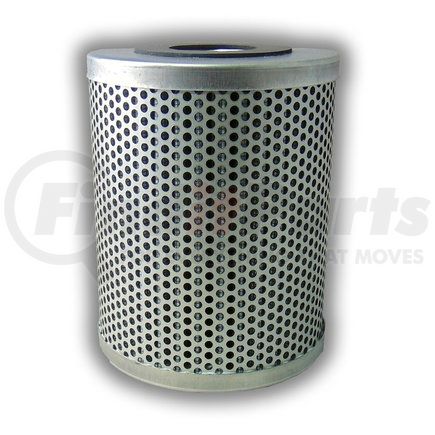

(888) 312-8812 Login SignupMAIN FILTER MF0572247 Aftermarket Replacement Hydraulic Filter, 40 Micron Glass Media, Buna N Seal, 4.016 in. OD
MSRP: $45.11
$4149
Save $3.62
Limited availability at this price!
In Stock
Get as soon as Thursday, Nov 12
MAIN FILTER MF0572247 Part Description
Manufacturer
Product Description
Aftermarket Replacement Hydraulic Filter, 40 Micron Glass Media, 4.016 in. OD
Features & Benefits
- Interchange/replacement for OEM BALDWIN p/n PT9344
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0572247 replaces OEM PT9344 by BALDWIN and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Technical Specifications
| Outside Diameter Top | 4.016 |
| Inide Diameter Top | 1.378 |
| Outside Diameter Bottom | 4.016 |
| Inside Diameter Bottom | 1.142 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Flow Direction | Inside-Out |
| Gasket Material | Buna |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/38.2 |
| Beta Ratio 2 | 1000/42.4 |
| Micron 1 | 40 |
| bypass | No |
| handle | No |
| wrap | Yes |
MAIN FILTER MF0572247 Specifications
Product Attributes
| Bottom Inside Diameter | 1.142 in. |
| Filter Media | Glass |
| Flow Direction | Inside Out |
| Fluid Type | HL, HM, HV, HH |
| Filter Rating | 40 micron |
| Bottom Outside Diameter | 4.016 in. |
| Flow Type | Inside Out |
| Gasket Material | Buna N |
| Minimum Operating Temperature | -13-deg. F |
| Maximum Operating Temperature | 248-deg. F |
| Seal Type | Buna N |
| Top Outside Diameter | 4.016 in. |
| Top Inside Diameter | 1.378 in. |
MAIN FILTER MF0572247 Cross References
| Brand | Part Number |
|---|---|
| BALDWIN | PT9344 |
