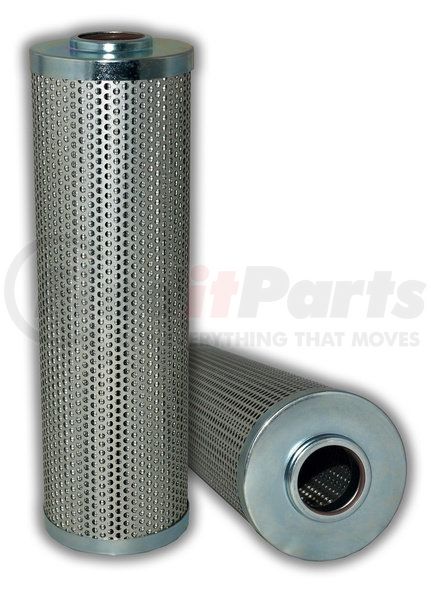

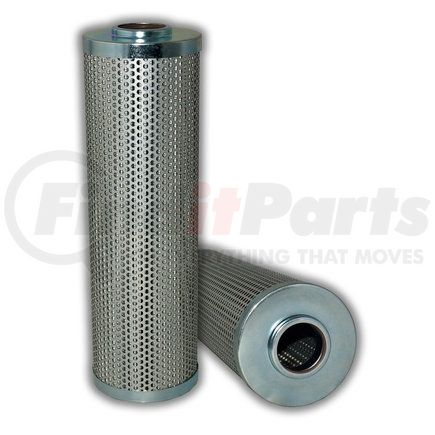

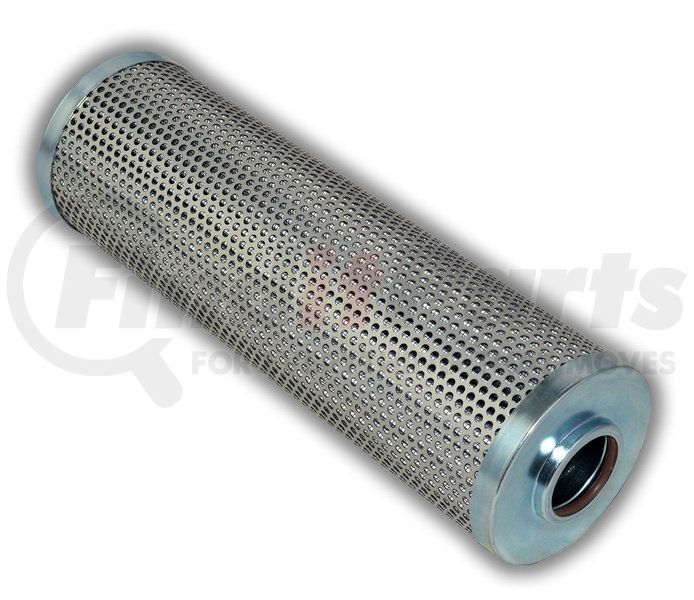

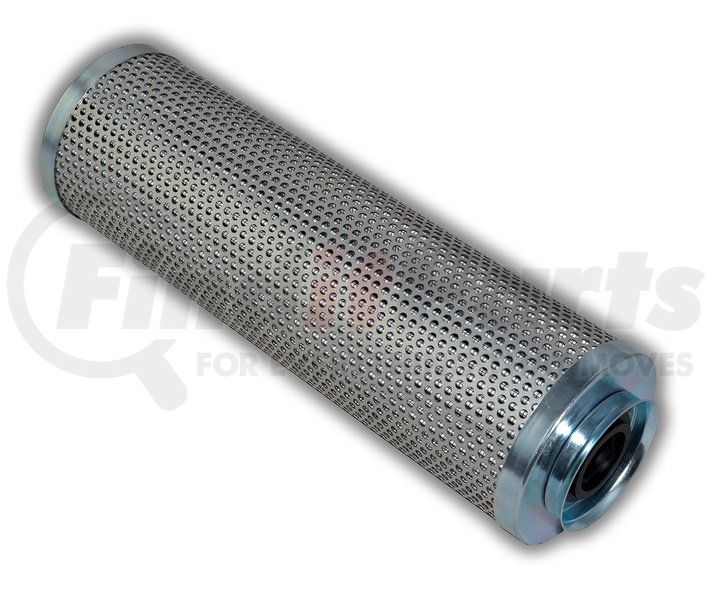

Name: Main Filter MF0893204 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0893204
Price: 119.49 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.13
Outside Diameter Bottom	3.13
Inside Diameter Bottom	1.26
BPVS Setting PSI	58
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	50.616
Filter Area sq in	684
Flow Direction	Outside-In
Gasket Material	Buna
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM MAHLE p/n P0008DN2003V40
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0893204 replaces OEM P0008DN2003V40 by MAHLE and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Images may be a general representations of products
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

Features & Benefits

Interchange/replacement for OEM MAHLE p/n P0008DN2003V40
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0893204 replaces OEM P0008DN2003V40 by MAHLE and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Wrap	Yes
Product Media	Glass
Height (in.)	10.74
Bypass	Yes
Handle	No
Micron Rating	3
BPVS Setting (PSI)	43.5
Collapse Pressure	145
Minimum Operating Temperature	-13 Deg Fahrenheit
Outside Diameter (Top)	3.13 in.
Maximum Operating Temperature	248 Deg Fahrenheit
Flow Direction	Outside-In
Filter Area (sq. in.)	684
Gasket Material	Buna
Dust Holding Capacity	50.62 grams
Beta Ratio 2	1000/4.5
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3

Part Interchanges

MAHLE P0008DN2003V40

MAIN FILTER MF0893204 Cross Reference

We have 1 alternatives for the MF0893204 by MAIN FILTER:

MAHLE P0008DN2003V40
