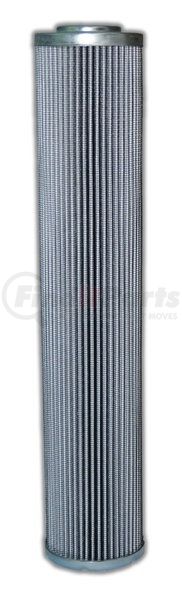

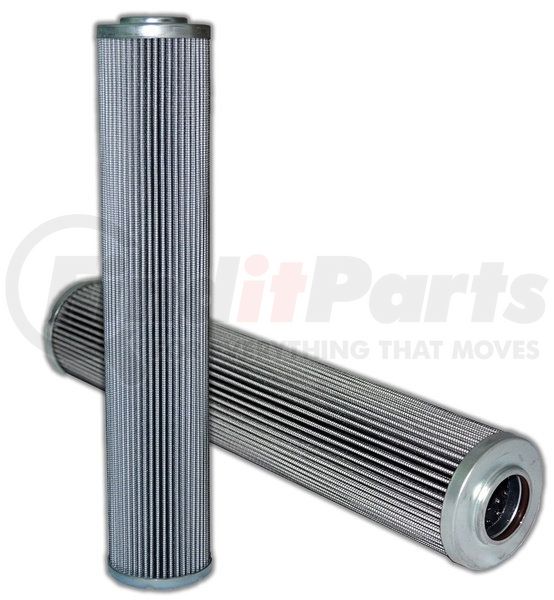

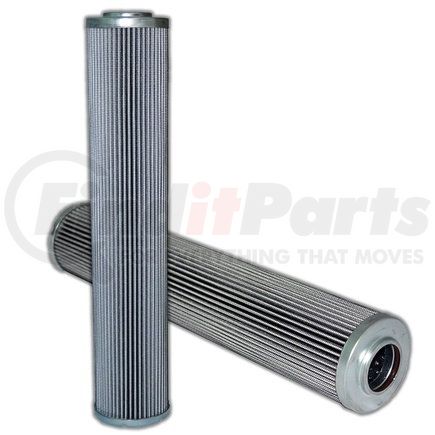

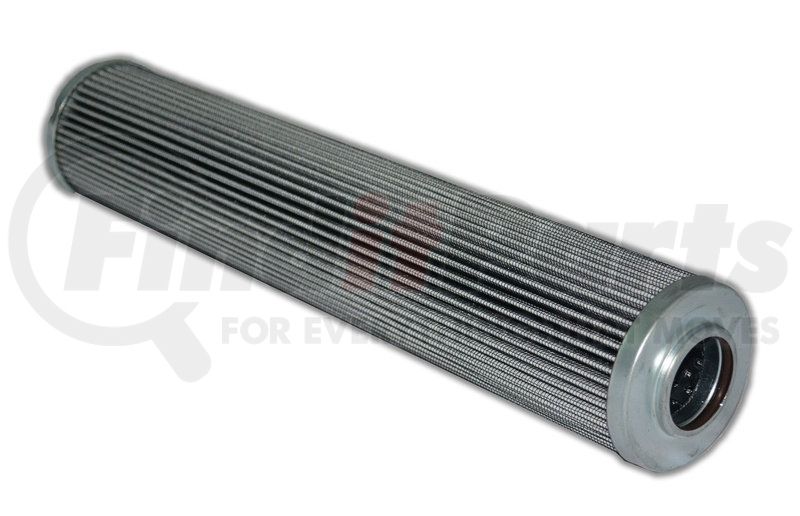

MAIN FILTER part description

Technical Specifications

Outside Diameter Top 2.717
Inide Diameter Top 1.347
Outside Diameter Bottom 2.717
Collapse Pressure 435
Operating Temp Min F -13
Operating Temp Max F 248
Capacity gr 49.74539
Filter Area sq in 672
Flow Direction Outside-In
Gasket Material Viton
Fluid Type HH / HL / HM / HV
Beta Ratio 1 200/3
Beta Ratio 2 1000/4.5
Micron 1 3

Features & Benefits

  • Interchange/replacement for OEM HY-PRO p/n HP16DNL143MV
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0834375 replaces OEM HP16DNL143MV by HY-PRO and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products
  • Interchange/replacement for OEM HY-PRO p/n HP16DNL143MV
  • Buy hydraulic filters direct from the manufacturer

Features & Benefits

  • Interchange/replacement for OEM HY-PRO p/n HP16DNL143MV
  • Compatible with OEM filter in fit, form and function
  • All of our elements are manufactured following ISO specifications.
  • Buy hydraulic filters direct from the manufacturer
  • Built using Quality Components with strict quality control.
  • Main Filter MF0834375 replaces OEM HP16DNL143MV by HY-PRO and is compatible in fit, form and function.
  • All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
  • All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
  • Images may be a general representations of products

Product Attributes

Handle No
Product Media Glass
Micron Rating 3
Outside Diameter (Bottom) 2.72 in.
Height (in.) 13.97
Minimum Operating Temperature -13 Deg Fahrenheit
Wrap No
Beta Ratio 1 200/3
Beta Ratio 2 1000/4.5
Maximum Operating Temperature 248 Deg Fahrenheit
Collapse Pressure 435
Gasket Material Viton
Filter Area (sq. in.) 672
Bypass No
Inside Diameter (Top) 1.35 in.
Dust Holding Capacity 49.75 grams
Outside Diameter (Top) 2.72 in.
Flow Direction Outside-In
Fluid Type HH / HL / HM / HV

Part Interchanges

MAIN FILTER MF0834375 Cross Reference

We have 1 alternatives for the MF0834375 by MAIN FILTER:
