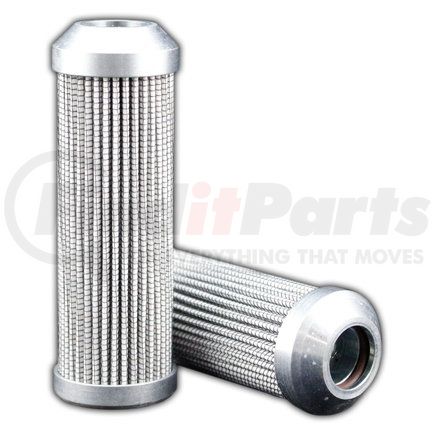

Main Filter MF0414247 - Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
- Part Number
- MF0414247
- Manufacturer
- MAIN FILTER
- Description
-
Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
details
$6199
MSRP: $73.07
Save: $11.08
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 1.3 |
| Inide Diameter Top | 0.65 |
| Outside Diameter Bottom | 1.3 |
| Collapse Pressure | 3045 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 3.182 |
| Filter Area sq in | 43 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/3 |
| Beta Ratio 2 | 1000/4.5 |
| Micron 1 | 3 |
Features & Benefits
- Interchange/replacement for OEM MP FILTRI p/n HP0201A03HA
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0414247 replaces OEM HP0201A03HA by MP FILTRI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
- Interchange/replacement for OEM MP FILTRI p/n HP0201A03HA
- Compatible with OEM filter in fit, form and function
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Built using Quality Components with strict quality control.
- Buy hydraulic filters direct from the manufacturer
- Images may be a general representations of products
Features & Benefits
- Interchange/replacement for OEM MP FILTRI p/n HP0201A03HA
- Compatible with OEM filter in fit, form and function
- All of our elements are manufactured following ISO specifications.
- Buy hydraulic filters direct from the manufacturer
- Built using Quality Components with strict quality control.
- Main Filter MF0414247 replaces OEM HP0201A03HA by MP FILTRI and is compatible in fit, form and function.
- All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
- All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
- Images may be a general representations of products
Product Attributes
| Height (in.) | 3.94 |
| Outside Diameter (Top) | 1.3 in. |
| Micron Rating | 3 |
| Outside Diameter (Bottom) | 1.3 in. |
| Collapse Pressure | 3045 |
| Dust Holding Capacity | 3.18 grams |
| Filter Area (sq. in.) | 43 |
| Flow Direction | Outside-In |
| Wrap | No |
| Fluid Type | HH / HL / HM / HV |
| Bypass | No |
| Minimum Operating Temperature | -13 Deg Fahrenheit |
| Beta Ratio 2 | 1000/4.5 |
| Handle | No |
| Product Media | Glass |
| Inside Diameter (Top) | 0.65 in. |
| Gasket Material | Viton |
| Beta Ratio 1 | 200/3 |
| Maximum Operating Temperature | 248 Deg Fahrenheit |
Part Interchanges
MAIN FILTER MF0414247 Cross Reference
We have 1 alternatives for the MF0414247 by MAIN FILTER:
