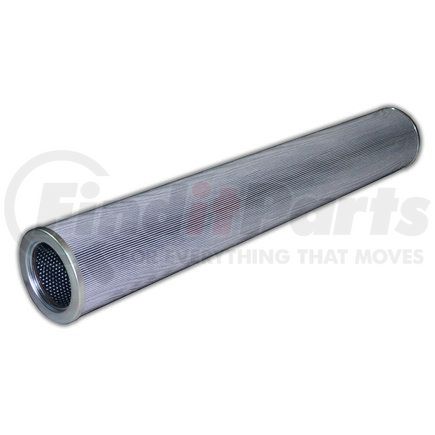

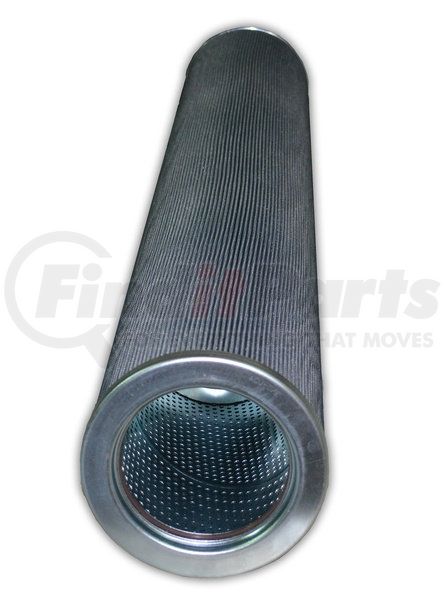

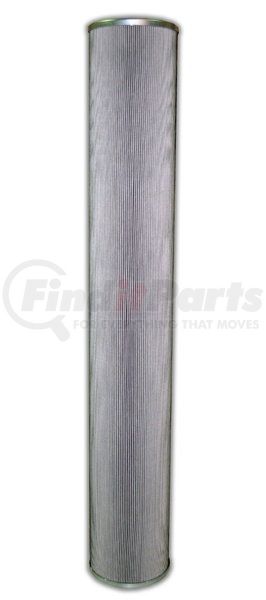

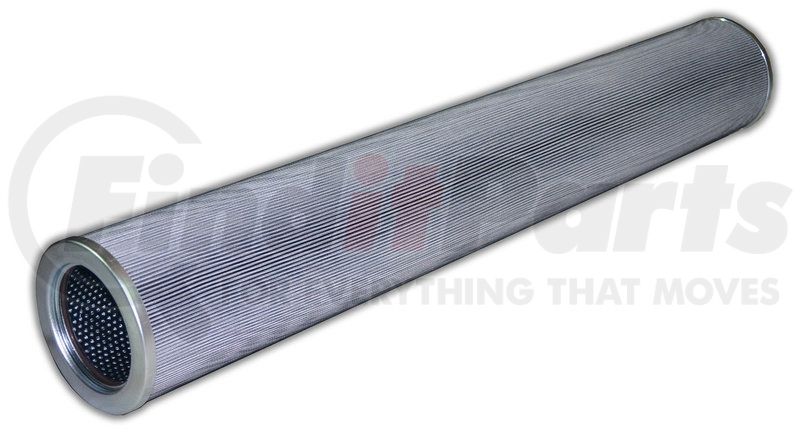

Name: Main Filter MF0426053 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0426053
Price: 321.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	5.984
Inide Diameter Top	4.154
Outside Diameter Bottom	5.984
Inside Diameter Bottom	4.154
Collapse Pressure	145
Operating Temp Min F	-13
Operating Temp Max F	248
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM FILTERSOFT p/n H8339MABL
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0426053 replaces OEM H8339MABL by FILTERSOFT and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Compatible with OEM filter in fit, form and function
Built using Quality Components with strict quality control.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Images may be a general representations of products
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM FILTERSOFT p/n H8339MABL
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0426053 replaces OEM H8339MABL by FILTERSOFT and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Bypass	No
Beta Ratio 2	1000/4.5
Handle	No
Height (in.)	38.58
Maximum Operating Temperature	248 Deg Fahrenheit
Inside Diameter (Bottom)	4.13 in.
Minimum Operating Temperature	-13 Deg Fahrenheit
Gasket Material	Viton
Outside Diameter (Top)	5.98 in.
Collapse Pressure	145
Beta Ratio 1	200/3
Product Media	Glass
Flow Direction	Outside-In
Fluid Type	HH / HL / HM / HV
Wrap	No
Outside Diameter (Bottom)	5.98 in.
Inside Diameter (Top)	4.13 in.
Micron Rating	3

MAIN FILTER MF0426053 Cross Reference

We have 1 alternatives for the MF0426053 by MAIN FILTER:

FILTERSOFT H8339MABL
