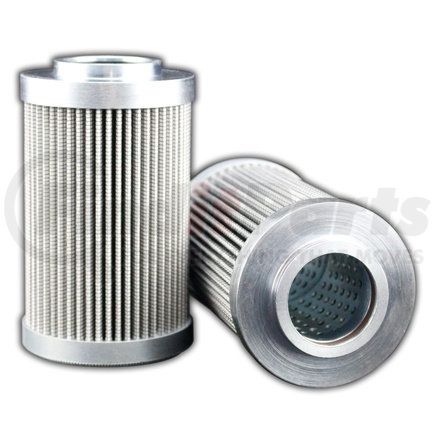

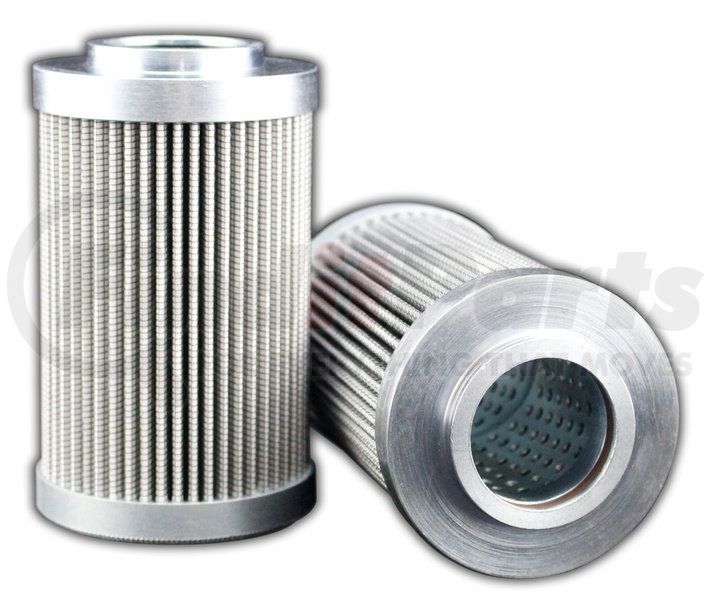

Name: Main Filter MF0264116 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0264116
Price: 78.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	2.717
Inide Diameter Top	1.346
Outside Diameter Bottom	2.717
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	14.7963
Filter Area sq in	200
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM PARKER p/n G03122
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0264116 replaces OEM G03122 by PARKER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
Interchange/replacement for OEM PARKER p/n G03122
Buy hydraulic filters direct from the manufacturer
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
Compatible with OEM filter in fit, form and function
Main Filter MF0264116 replaces OEM G03122 by PARKER and is compatible in fit, form and function.
Images may be a general representations of products

Features & Benefits

Interchange/replacement for OEM PARKER p/n G03122
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0264116 replaces OEM G03122 by PARKER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Beta Ratio 2	1000/4.5
Fluid Type	HH / HL / HM / HV
Bypass	No
Gasket Material	Viton
Handle	No
Outside Diameter (Bottom)	2.72 in.
Filter Area (sq. in.)	200
Outside Diameter (Top)	2.72 in.
Micron Rating	3
Dust Holding Capacity	14.8 grams
Beta Ratio 1	200/3
Wrap	No
Flow Direction	Outside-In
Maximum Operating Temperature	248 Deg Fahrenheit
Collapse Pressure	3045
Height (in.)	4.53
Minimum Operating Temperature	-13 Deg Fahrenheit
Inside Diameter (Top)	1.35 in.
Product Media	Glass

Part Interchanges

Parker G03122

MAIN FILTER MF0264116 Cross Reference

We have 1 alternatives for the MF0264116 by MAIN FILTER:

PARKER G03122
