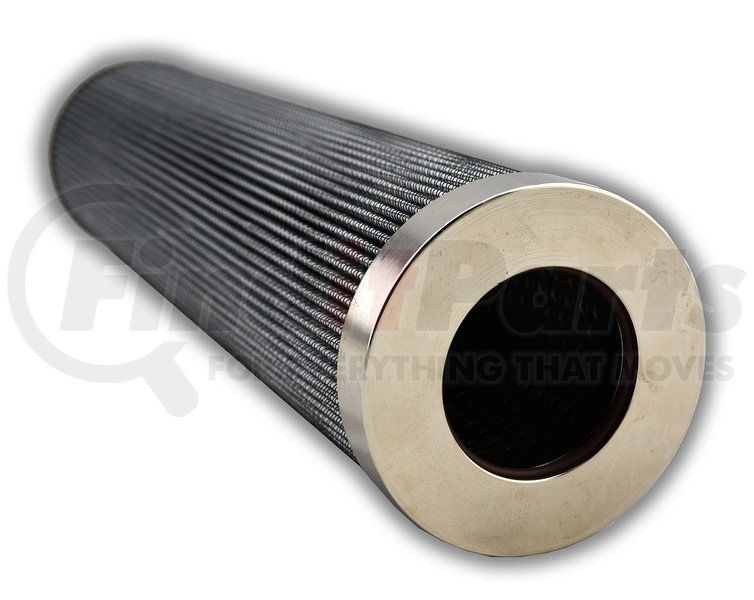

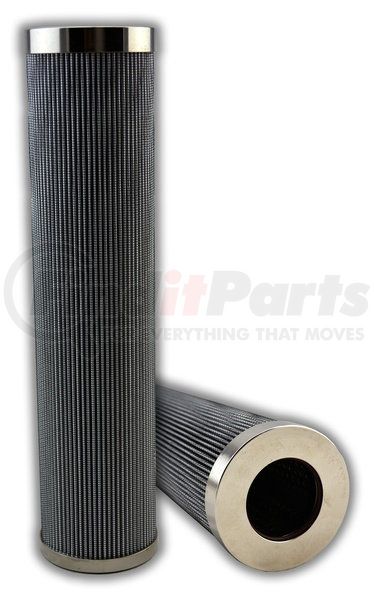

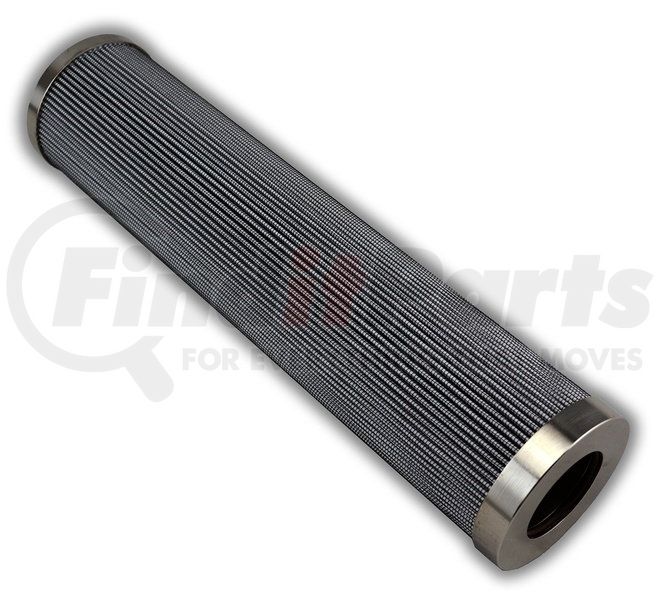

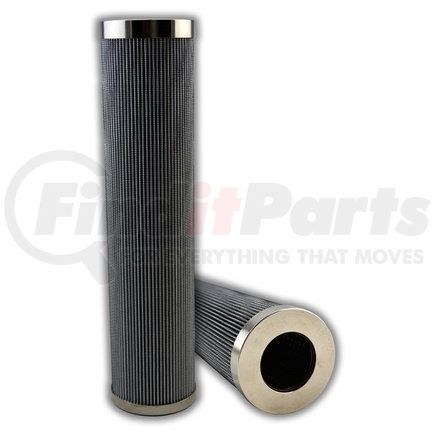

Name: Main Filter MF0584803 Aftermarket Replacement Hydraulic Filter with 3 Micron Rating, Glass, Outside-In Flow
SKU: mf0584803
Price: 203.99 USD
Availability: InStock

MAIN FILTER part description

Technical Specifications

Outside Diameter Top	3.071
Inide Diameter Top	1.693
Outside Diameter Bottom	3.071
Collapse Pressure	3045
Operating Temp Min F	-13
Operating Temp Max F	248
Capacity gr	48.13959
Filter Area sq in	651
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200/3
Beta Ratio 2	1000/4.5
Micron 1	3

Features & Benefits

Interchange/replacement for OEM FINN FILTER p/n FC7007A003BS
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0584803 replaces OEM FC7007A003BS by FINN FILTER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer

Features & Benefits

Interchange/replacement for OEM FINN FILTER p/n FC7007A003BS
Compatible with OEM filter in fit, form and function
All of our elements are manufactured following ISO specifications.
Buy hydraulic filters direct from the manufacturer
Built using Quality Components with strict quality control.
Main Filter MF0584803 replaces OEM FC7007A003BS by FINN FILTER and is compatible in fit, form and function.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter.
Images may be a general representations of products

Product Attributes

Beta Ratio 2	1000/4.5
Collapse Pressure	3045
Gasket Material	Viton
Handle	No
Height (in.)	12.99
Beta Ratio 1	200/3
Maximum Operating Temperature	248 Deg Fahrenheit
Outside Diameter (Bottom)	3.07 in.
Wrap	No
Product Media	Glass
Filter Area (sq. in.)	651
Bypass	No
Dust Holding Capacity	48.14 grams
Micron Rating	3
Inside Diameter (Top)	1.69 in.
Fluid Type	HH / HL / HM / HV
Flow Direction	Outside-In
Outside Diameter (Top)	3.07 in.
Minimum Operating Temperature	-13 Deg Fahrenheit

Part Interchanges

Finn Filter FC7007A003BS

MAIN FILTER MF0584803 Cross Reference

We have 1 alternatives for the MF0584803 by MAIN FILTER:

FINN FILTER FC7007A003BS
