DELPHI TA5022 Part Description
Manufacturer
Product Description

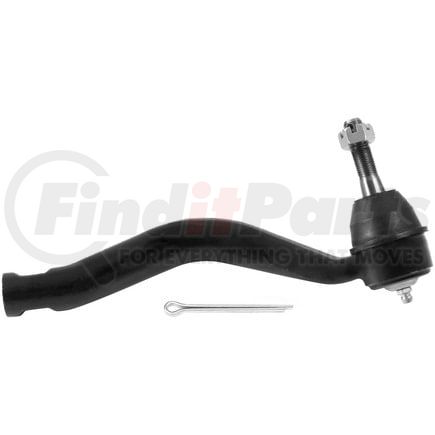

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5022 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 240.00 MM |
| Color | Black |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 64.5 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 103.60 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Tube Diameter | 1.004 IN |
| Tube Diameter | 25.50 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 2.51 lb |
| Cone Outside Diameter | 15.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.543 IN |
| Length - Stud Center to End | 217.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.50 MM |
| Stud Length | 15.50 MM |
| Grade | Premium |
| Shank Length | 0.610 IN |
| Stud Length | 0.610 IN |
| Cone Outside Diameter | 0.610 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604286463 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5022 Cross References
DELPHI TA5022 Fits Vehicles
- Lexus RC300 (2016-2022)
- Lexus IS300 (2016-2022)
- Lexus RC350 (2015-2022)
- Lexus IS350 (2011-2022)
- Lexus GS350 (2007-2011, 2013-2020)
- Lexus IS250 (2006-2015)
- Lexus GS300 (2006)
