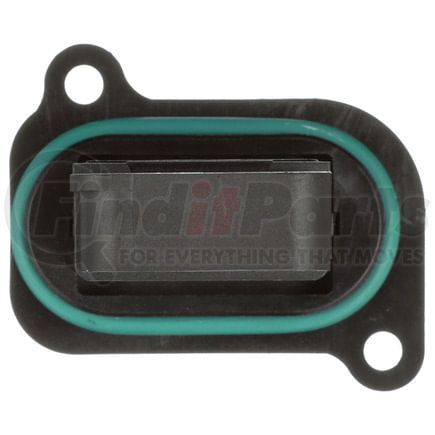

(888) 312-8812 Login SignupDELPHI AF10527 Mass Air Flow Sensor
$39699
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Dec 23
DELPHI AF10527 Part Description
DELPHI AF10527 Specifications
Product Attributes
| Position(s) | Right |
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 51 MM |
| Sensor Casing Width | 42 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 48.40 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 48 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.0 IN |
| Sensor Casing Width | 1.6 IN |
| Bolt Hole Center To Bolt Hole Center | 1.90 IN |
| Mounting Hole Diameter | 4.4 MM |
| Seal Outside Diameter | 1.8 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604294734 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10527 Part Interchanges
| Brand | Part Number |
|---|---|
| Bosch | 0280218231 |
| BWD | MA1267 |
| BMW | 13 62 7 582 337 |
| Standard Motor Products | MAS0435 |
| NAPA Reman Computers | XTP410130 |
DELPHI AF10527 Fits Vehicles
- BMW M760i xDrive (2017-2021)
- BMW 760Li (2010-2015)
