(888) 312-8812 Login SignupDELPHI TC6665 Control Arm and Ball Joint Assembly
Tap to view 13 more
$12299
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Feb 10
DELPHI TC6665 Part Description
Manufacturer
Product Description

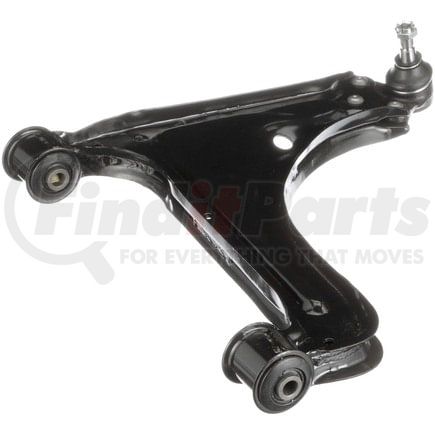

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC6665 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Control Arm Maximum Width | 16.150 IN |
| Control Arm Maximum Width | 410.20 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 1.445 IN |
| Ball Joint Stud Length | 36.70 MM |
| Control Arm Maximum Length | 13.331 IN |
| Control Arm Maximum Length | 338.60 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Control Arm Material | Steel |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Ball Joint Thread Diameter | 11.99 MM |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TW |
| UPC | 00689604350843 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6665 Cross References
DELPHI TC6665 Fits Vehicles
- Pontiac Sunbird (1987-1994)
- Pontiac Grand Am (1985-1993)
- Oldsmobile Firenza (1987-1988)
- Oldsmobile Cutlass Calais (1988-1991)
- Oldsmobile Achieva (1992-1993)
- Chevrolet Corsica (1987-1993)
- Chevrolet Cavalier (1982-1994)
- Chevrolet Beretta (1987-1993)
- Cadillac Cimarron (1982-1988)
- Buick Somerset (1986-1987)
- Buick Somerset Regal (1985)
- Buick Skylark (1987-1993)
- Buick Skyhawk (1982-1989)
