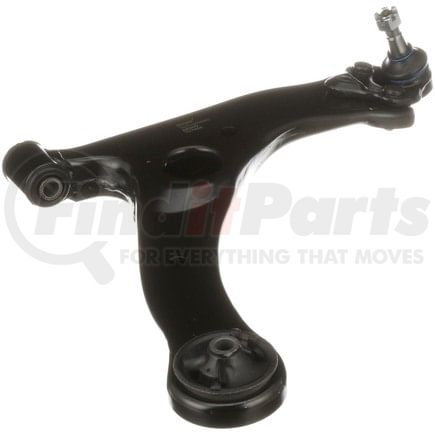

(888) 312-8812 Login SignupDELPHI TC7646 Control Arm and Ball Joint Assembly
Tap to view 13 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DELPHI TC7646 Part Description
DELPHI TC7646 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.819 IN |
| Control Arm Maximum Width | 97.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.925 IN |
| Ball Joint Stud Length | 23.50 MM |
| Control Arm Maximum Length | 16.850 IN |
| Control Arm Maximum Length | 428.00 MM |
| Bushing Material | Rubber |
| Grade Type | Standard |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604331118 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC7646 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB75284PR, 528-100, CB75284 |
| MEVOTECH | CMS861154 |
| MOOG | RK623669 |
| MOOG Chassis Products | 102-8062, K200782 |
| N/A | 43330-19115, 102-8062, CMS861154 |
| Toyota | 48068-02300, 4806802301, 930031088 |
DELPHI TC7646 Fits Vehicles
- Toyota Corolla (2014-2019)
