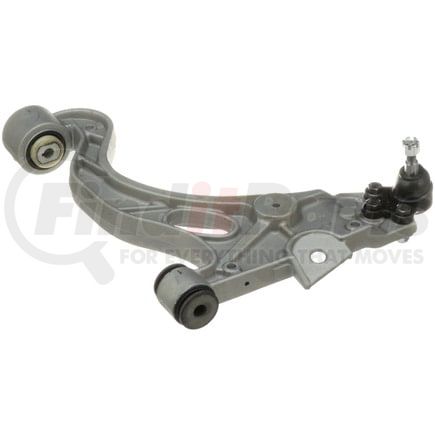

(888) 312-8812 Login SignupDELPHI TC5818 Control Arm and Ball Joint Assembly
Tap to view 13 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DELPHI TC5818 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5818 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 3.425 IN |
| Ball Joint Stud Length | 87.00 MM |
| Control Arm Maximum Length | 18.189 IN |
| Control Arm Maximum Length | 462.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 14.20 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Thread Diameter | 0.472 IN |
| Mounting Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604315682 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5818 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | CB91053, CB91053PR |
| Dorman | 520-169, 520-170 |
| General Motors | 25766511, 25699468, 25766510 |
| MAS Industries | CB91053, CB91053PR, CB91054, CB91054PR |
| MEVOTECH | CMS50113 |
| MOOG Chassis Products | CK620291, K5333, RK620291, CK620292, K5331, RK620292 |
| N/A | 25699467, GS50113, CMS50113, JTC2396, 623.62033 |
| TRW | JTC2395 |
DELPHI TC5818 Fits Vehicles
- Pontiac Bonneville (2000-2005)
- Oldsmobile Aurora (1998-1999, 2001-2003)
- Cadillac Seville (1998-2004)
- Cadillac DeVille (2000-2005)
- Buick Riviera (1998-1999)
- Buick Park Avenue (1998-2005)
- Buick LeSabre (2000-2005)
