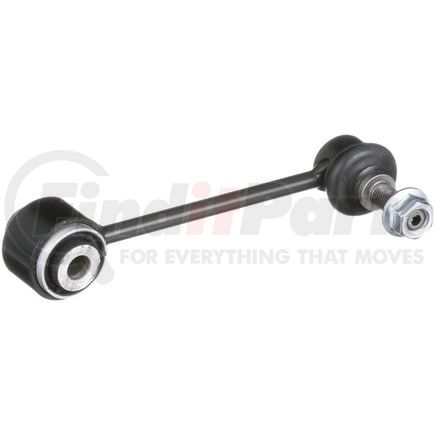

(888) 312-8812 Login SignupDELPHI TC5624 Suspension Stabilizer Bar Link
Tap to view 3 more
$2199
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
DELPHI TC5624 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5624 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front |
| Material | Ball Pin - Steel |
| Bushing Outside Diameter | 1.437 IN |
| Bushing Outside Diameter | 36.50 MM |
| Bushing Color | Black |
| Length | 203.00 MM |
| Length | 7.992 IN |
| End 2 Type | Male - M12x1.50 |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Sleeve Inside Diameter | 12 MM |
| Sleeve Inside Diameter | 0.472 IN |
| Sleeve Length | 1.772 IN |
| Sleeve Length | 45 MM |
| Width | 42 MM |
| Width | 1.654 IN |
| Washers Included | No |
| Height | 85.00 MM |
| Height | 3.346 IN |
| Grade Type | Performance |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 0.8 lb |
| Bearing Material | Polyoxymethylene (POM) |
| Bushing Material | Rubber |
| Wrench Size | 5mm |
| Distance Between Mounting Holes | 158.00 MM |
| Locking Nuts Included | Yes |
| Bushing Inside Diameter | 23.00 MM |
| Bushing Inside Diameter | 0.906 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604305393 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC5624 Cross References
DELPHI TC5624 Fits Vehicles
- Porsche Panamera (2010-2016)
