DELPHI TA5540 Part Description
Manufacturer
Product Description

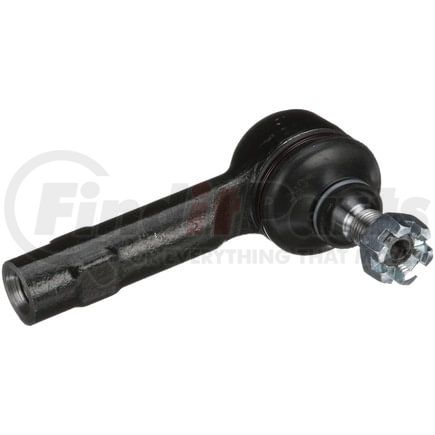

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5540 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 113.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 12.00 MM |
| Height | 68.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.91 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 94.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 12.00 MM |
| Grade Type | Standard Replacement |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| Length - Stud Center to End | 3.701 IN |
| End 1 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Country of Origin (Primary) | TR |
| UPC | 00689604315798 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5540 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3620 |
| DORMAN | 531-874, T3142, T3142PR |
| Datsun/Nissan | 48520-01E00, 48520-01E25, 48520-02E00, 48520-02E25, 48520-0M025, 48520-50Y25, 48520-53E25, 48520-Q9000, 4852001, 4852001W26 |
| MAS Industries | 534-588 |
| MEVOTECH | MS30615 |
| MOOG Chassis Products | ES2046R, ES2333, ES3142RL, ES3602 |
| Mevotech | MES2333, MES3416 |
| N/A | GES3142RL, MES3142RL, T3142, T3142PR |
| TRW | JTE265 |
DELPHI TA5540 Fits Vehicles
- Nissan Axxess (1990-1995)
- Nissan Stanza (1990-1992)
