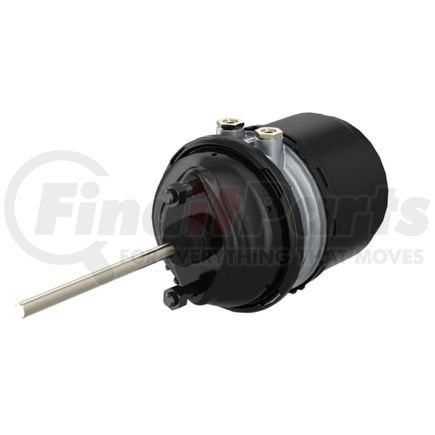

WABCO 9254921020 - Air Brake Chamber
$53699
30 day lead time
. Learn more
WABCO part description
Universal Tristop-Cylinder Cam 30/30
Product Attributes
| Max. operating pressure | 147.94 / 123.28 psi |
| Weight | 24.511 |
| Return-Spring Force | 280 N |
| Output Force 3 | 11500 N |
| Distance between bolts | 120.6 mm |
| Total Length | 285.0 mm |
| Temperature Range | -40°C to +80°C |
| Bolt Lengths | 43.0 mm |
| Output Force M | 12915 N |
| Thread Length | 9.84 in |
| Size | 617 x 225 x 220 |
| Calculated Volume (dm³) | 30.5415 |
| Release Pressure | 5.2 bar |
| Stroke | 65/65 mm |
| Type | 30/30 IBV |
| Push-Rod Length | 252 mm |
| Type Of Operation | Cam |
| Port thread 12 | M16 x 1.5 |
| Port threads | M16 x 1.5 . M22 x 1.5 |
| Push-rod thread | M16 x 1.5 |
| Bolt Threads | M16 x 1.5 |
| Version | With boot |
| Yoke | Without |
| Port thread 11 | M16 x 1.5 |
WABCO 9254921020 Cross Reference
We have 1 alternatives for the 9254921020 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
