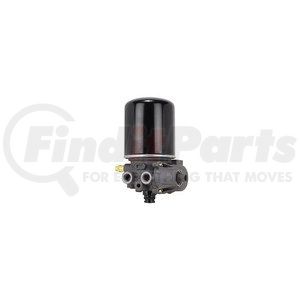

WABCO 4324130650 - AD-SysS 1800P Single Cartridge Air Brake Dryer with TCV and Harness, Replaced by 4324210220
$92899
MSRP: $1,448.58
Save: $519.59
Limited Availability
. Learn more
WABCO part description
Product Description
AIR DRYER
Product Attributes
| Port thread 21 | 1/2" - 14 NPTF |
| Weight | 10 |
| Opening Pressure | 12.80 Bar |
| Temperature Range | -40°C to +80°C |
| Calculated Volume (dm³) | 27.148 |
| Size | 406 x 292 x 229 |
| Cut-Out Pressure | 7.9 to 9.0 Bar |
| Heating Connection | 280 Metri-Pack Nr. 1202 0599 |
| Voltage | 24 V |
| Port thread 22 | 1/4" - 18 NPTF |
| Cartridge Type | Desiccant Cartridge |
| Exhaust | JED-463-0 |
| Port thread 3 | JED- 463-0 |
| Max. operating pressure | 9.0 Bar |
| Port Thread 4/23 | 1/4" - 18 NPTF |
| Comments | Turbo-Cut-Off Valve (TCV) Installed |
| Calculated Volume (Cubic Decimeter) | 27.148 |
| Part Type | Premium Original Quality |
| Product Category | Device |
| Technical specification | OE Specification |
Part Interchanges
WABCO 4324130650 Cross Reference
We have 3 alternatives for the 4324130650 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
