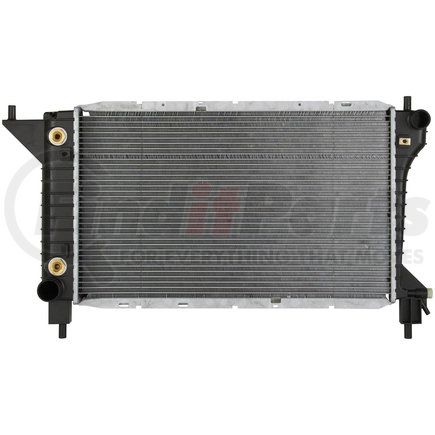

(888) 312-8812 Login SignupREACH COOLING 41-1775 Radiator
Tap to view 9 more
$21699
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
REACH COOLING 41-1775 Part Description
Manufacturer
Product Description
Radiator
Features & Benefits
- Our B-type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
- Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
- Our fin edges are folded for increased stability and heat disbursement properties.
- Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
- Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
- We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
- We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
No Shipping Restriction
REACH COOLING 41-1775 Specifications
Product Attributes
| Core Thickness | 1 IN |
| Core Thickness | 26 MM |
| Core Height | 24 IN |
| Inlet Header Length | 382.6 MM |
| Core Height | 610 MM |
| Core Width | 377.8 MM |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Width | 14.875 IN |
| Inlet Header Length | 15.062 IN |
| Outlet Header Length | 15 IN |
| Outlet Header Length | 381.00 MM |
| Inlet Location | Top Right |
| Transmission Oil Cooler Type | Concentric |
| Outlet Location | Bottom Left |
| Outlet Header Width | 47.6 MM |
| Transmission Oil Cooler Included | Yes |
| Inlet Header Width | 1.875 IN |
| Transmission Oil Cooler Distance between Fittings | 254 MM |
| Inlet Diameter | 1.75 IN |
| Outlet Diameter | 38.1 MM |
| Inlet Header Width | 47.6 MM |
| Outlet Header Width | 1.875 IN |
| Inlet Diameter | 44.5 MM |
| Outlet Diameter | 1.5 IN |
| Radiator Cap Included | Not Needed |
| Core Row Quantity | 1 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Transmission Oil Cooler Distance between Fittings | 10 IN |
| Engine Oil Cooler Included | No |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8708915000 |
| UPC | 08859869506299 |
| VMRS Code | 042002001 |
| UNSPSC | 25174002 |
REACH COOLING 41-1775 Cross References
| Brand | Part Number |
|---|---|
| 1-800-Radiator | 1775 |
| APDI | 8011775 |
| APDI RADS | 8011775 |
| Advance Auto Parts | 431322 |
| AutoNation | 19812-00476 |
| AutoZone | B1775 |
| Besuto | BES1775 |
| CRS | CUC1775 |
| CRS Automotive | CRS1775, CUC1775 |
| CryoMAX | 0R-001775-A2CM, 0R001775A2CM, 1775 |
| DENSO | 2219157, 221-9157 |
| DPI DataPoint Inc | 1775 |
| Dixin USA | DX1775 |
| Factory Air | RAD1775 |
| Federated | 1775 |
| Fisher | CU1775 |
| Ford | F6ZH8005CA, 52470376, F2ZHBA, F6ZH8005AA, F6ZH8005BA, F6ZH8N150AA, F6ZHAA, F6ZZ-8005-A, F6ZZ-8005-B, F6ZZ-8005-CCP, F6ZZ-8005-HB, F6ZZ-8005-JB, F6ZZ8005A, F6ZZ8005B, F6ZZ8005C, F6ZZ8005CCP, F6ZZ8005HB, F6ZZ8005JB, F6ZZA, F6ZZB, F7ZZ-8005-AA, F7ZZ-8005-BA, F7ZZ8005AA, F7ZZ8005BA, F7ZZAA, F7ZZBA |
| Frontera | AM1775 |
| GLOBAL PARTS DISTRIBUTORS | 1775C |
| Genera - Archived | 1775 |
| Keystone Auto Industries | RAD1775 |
| Klimoto | KLI1775 |
| Koyo | A1775 |
| Modine | 2521 |
| Murray Heat Transfer | 431322 |
| NAPA | 2521, NR1775B |
| Northern Radiator | CR1775 |
| OSC | 1775 |
| PACIFIC BEST INC. | PR1775A |
| PBI | PR1775A |
| Partslink | FO3010114 |
| Platinum Pro | RAD1775 |
| Proliance | 431322 |
| RadCool | 1775 |
| Reach Cooling | REA411775A |
| Silla Cooling | 2521A |
| Spectra Premium | CU1775 |
| Sunbelt Radiators Inc | SBR1775 |
| TYC | 1775 |
| Thermal Solutions Manufacturing | 40359 |
| Tongshi | 78058 |
| US Motor Works | USR1775 |
| Vision | 1775 |
| Vista Pro | 431322, 9376 |
| Visteon | 9376 |
REACH COOLING 41-1775 Fits Vehicles
- Ford Mustang (1996)
REACH COOLING 41-1775 Customer Reviews
No reviews yet
Be the first to review this product!
REACH COOLING 41-1775 Questions & Answers
No questions yet
Be the first to ask a question about this product!
