DELPHI TA5436 Part Description
Manufacturer
Product Description

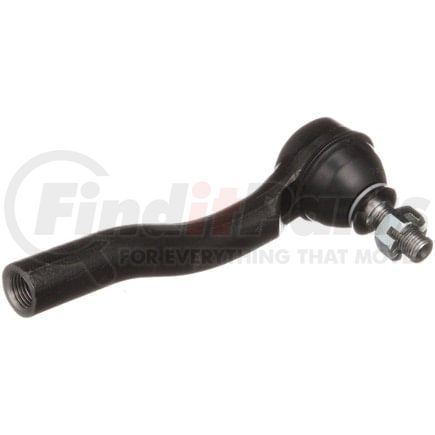

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA5436 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Length | 170.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42 MM |
| Type | Bent |
| End 2 Thread Diameter | 14.00 MM |
| Height | 72.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.16 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 2.165 IN |
| Length - Stud Center to End | 55.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 17 |
| End 1 Thread Diameter | 12.00 MM |
| Mounting Hardware Included | Yes |
| Grade Type | Standard Replacement |
| End 2 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604301661 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA5436 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7880 |
| DORMAN | TO59262, TO59262XL |
| Honda | 53540-T0A-A01, 53540-T0A-A11, 53540-T1W-A01 |
| MEVOTECH | MS60639, TXMS60639 |
| MOOG | ES801156 |
| MOOG Chassis Products | ES801156 |
| N/A | 53540T1GE01, 53540T0AA12, MS60639, TO59262, TXMS60639, TO59262XL, 612.4011 |
| TRW | JTE1937 |
DELPHI TA5436 Fits Vehicles
- Honda CR-V (2012-2016)
