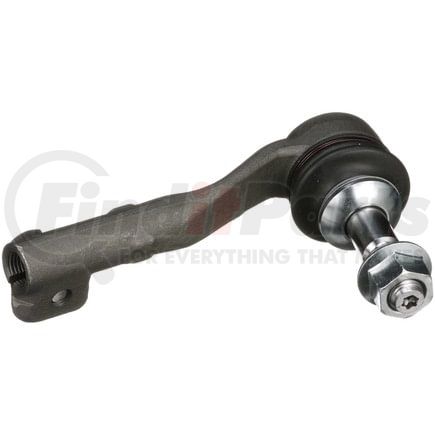

Delphi TA5560 - Tie Rod End
$5699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 168.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 44 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| Height | 107.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.79 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 146.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Grade Type | Standard |
| Locking Nut Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| Length - Stud Center to End | 5.748 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604315811 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- BMW 430i xDrive Gran Coupe (2017-2020)
- BMW 430i xDrive (2017-2020)
- BMW 440i xDrive Gran Coupe (2017-2020)
- BMW 330i xDrive (2017-2018)
- BMW 440i xDrive (2017-2020)
- BMW 340i GT xDrive (2017-2019)
- BMW 330i GT xDrive (2017-2019)
- BMW 230i xDrive (2017-2021)
- BMW M240i xDrive (2017-2020)
- BMW 340i xDrive (2016-2018)
- BMW 328i GT xDrive (2014-2016)
- BMW M235i xDrive (2015-2016)
- BMW 228i xDrive (2015-2016)
- BMW 428i xDrive Gran Coupe (2015-2016)
- BMW 435i xDrive Gran Coupe (2015-2016)
- BMW 328d xDrive (2014-2018)
- BMW 335i xDrive (2014-2015)
- BMW 335i GT xDrive (2014-2016)
- BMW 435i xDrive (2014-2016)
- BMW 428i xDrive (2014-2016)
- BMW 320i xDrive (2013-2018)
- BMW 328i xDrive (2013-2016)
