Need help? We're here!

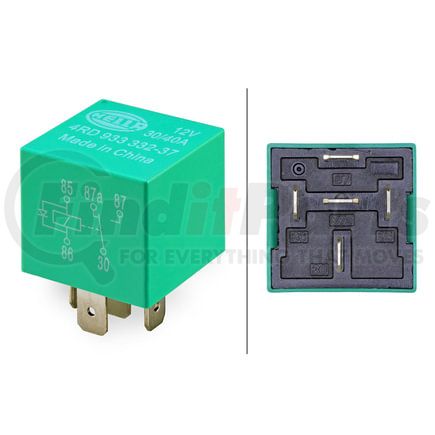

(888) 312-8812 Login SignupHELLA 933332377 CHANGE-OVER RELAY 4RD
$799
Limited Availability
Minimum order: 40
Due to limited availability, we will confirm your order and notify you within 1 business day.
HELLA 933332377 Part Description
HELLA 933332377 Specifications
Product Attributes
| Capacitive Load [a] | 5 |
| Number of Pins | 5 |
| Ohmic Load [a] | 40 |
| Inductive Load [a] | 15 |
| Capacity at 12V | 30A/40A |
| Voltage [V] | 12 |
| Combi Switch Function | Changeover Contact |
| Temperature Range From [°c] | -40 |
| Quantity | 40 |
| Weight [g] | 25 |
| Rated Current [a] | 40 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Temperature Range To [°c] | 125 |
| Supplementary Article/Supplementary Info | with suppression diode |
Additional Information
| Harmonized Tariff Code (HTS) | 8536410050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300688313 |
HELLA 933332377 Part Interchanges
| Brand | Part Number |
|---|---|
| Ferrari | 156 669 |
| Mercedes-Benz | 000 835 01 59, 004 545 38 05, A 000 835 01 59, A 004 545 38 05 |
| Rolls-Royce | UD 75826 |
