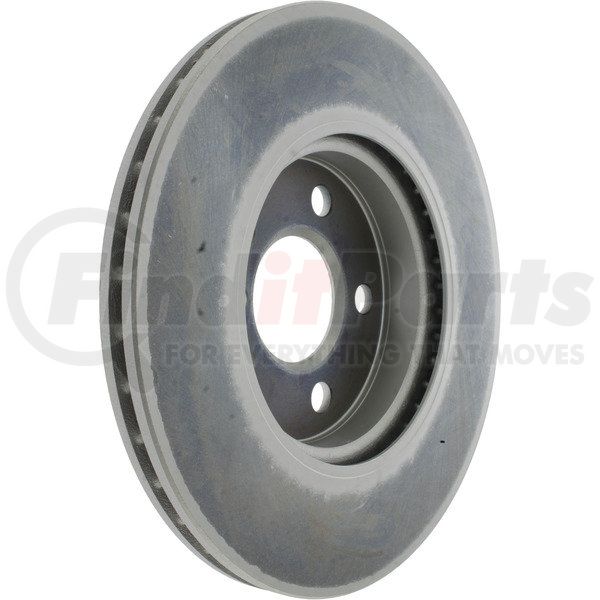

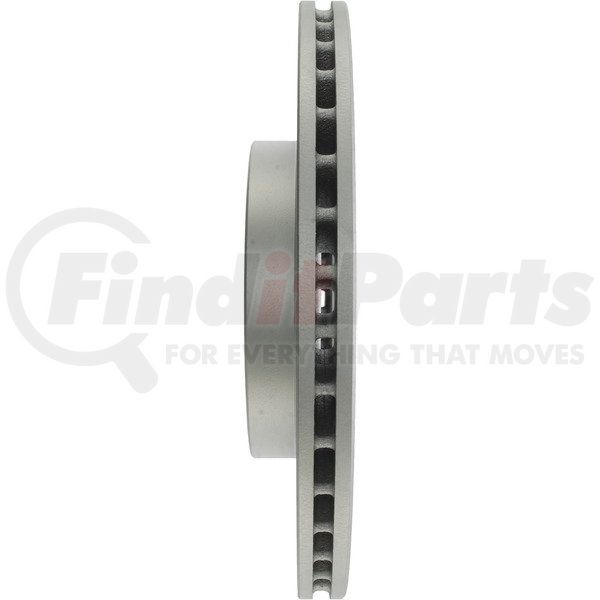

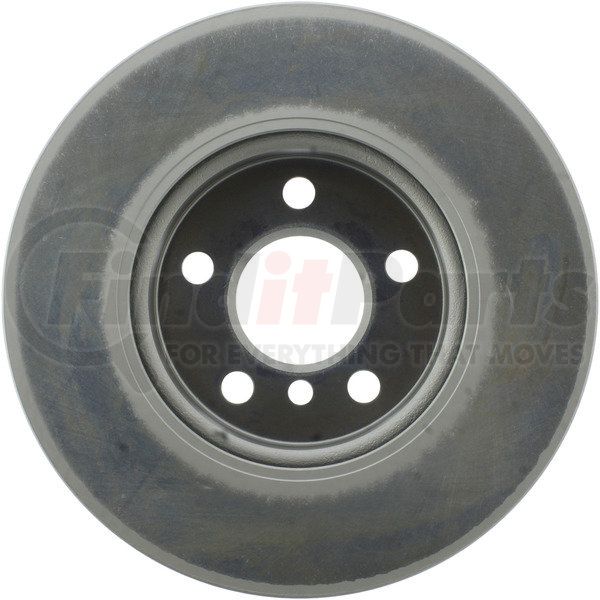

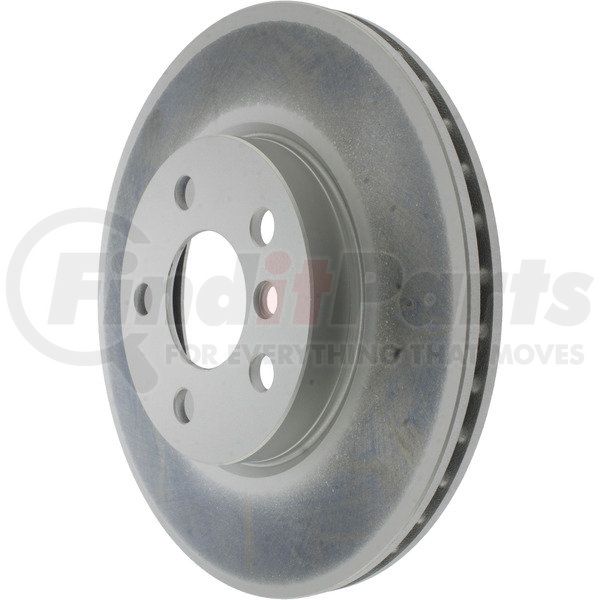

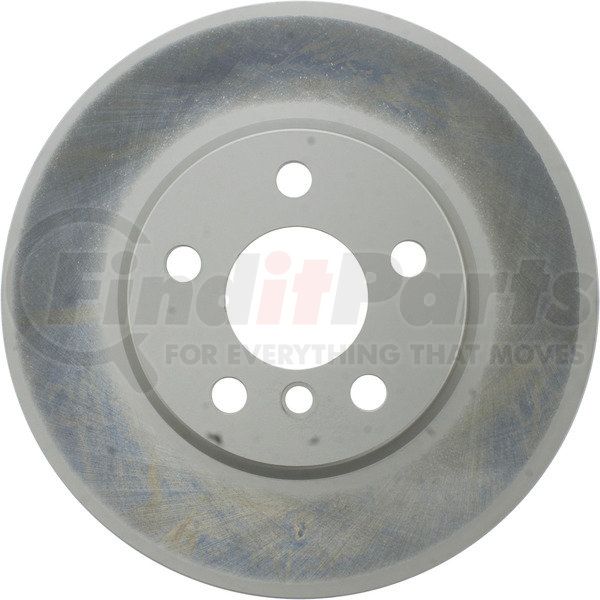

Centric 320.34166C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 6.360 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] Mm | 150.600 |
| Hat Id [cntrc] In | 5.929 |
| Weight [cntrc] Lbs | 14.050 |
| Misc Holes [cntrc] | 1 |
| OEM Vane Count [cntrc] | 40 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.400 MM |
| Nominal Thickness | 21.900 MM |
| Nominal Thickness | 0.862 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.400 MM |
| Overall Height | 1.787 IN |
| Outside Diameter | 294.000 MM |
| Outside Diameter | 11.575 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.100 MM |
| Mounting Bolt Hole Circle Diameter | 4.413 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.700 MM |
| Stud/Lug Hole Diameter | 0.657 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590387759 |
Part Interchanges
CENTRIC 320.34166C Cross Reference
We have 3 alternatives for the 320.34166C by CENTRIC:
