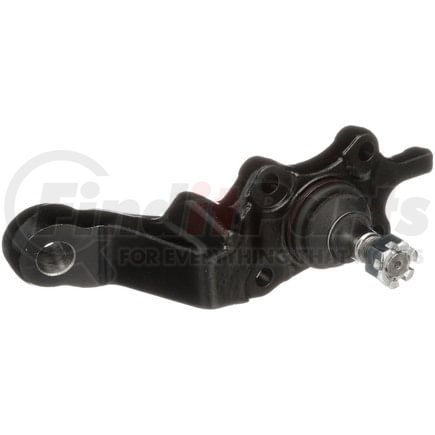

DELPHI TC5578 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5578 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 85.1 MM |
| Type | Threaded |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 0.670 IN |
| Mounting Bolt Length | 17.00 MM |
| Washers Included | No |
| Height | 6.500 IN |
| Height | 165.00 MM |
| Nuts Included | No |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.94 IN |
| Stud Thread Length | 24 MM |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 55.10 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.390 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.240 IN |
| Mounting Bolt Thread Length | 6.00 MM |
| Tapered Stud | Yes |
| Stud Thread Pitch | 1.5 MM |
| Length | 240.00 MM |
| Length | 9.450 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604301234 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5578 Cross References
DELPHI TC5578 Fits Vehicles
- Toyota Tacoma (1995-2004)
