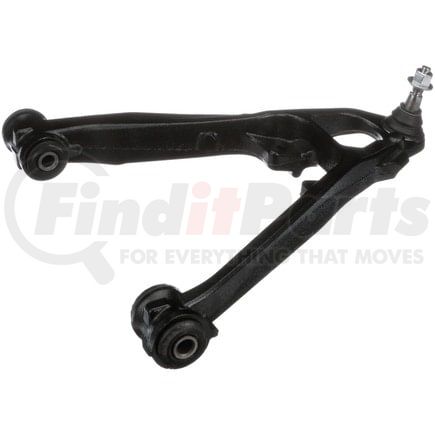

(888) 312-8812 Login SignupDELPHI TC5575 Control Arm and Ball Joint Assembly
Tap to view 13 more
$13599
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI TC5575 Part Description
DELPHI TC5575 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 19.685 IN |
| Control Arm Maximum Width | 500.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 3.740 IN |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 20.669 IN |
| Control Arm Maximum Length | 525.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.453 IN |
| Mounting Hole Diameter | 11.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604301395 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC5575 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | CK620955, K6541, RK620889 |
| General Motors | 20869200 |
| MAS Industries | CB91194, CB91194PR |
| TRW | JTC1974 |
| N/A | 15167933, 15948968, GS50153, 52-1646, CTXMS50153, CMS50153, 20869202, 22952194, 25788115, 25868824 |
DELPHI TC5575 Fits Vehicles
- Chevrolet Suburban (2016-2018)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2014)
- GMC Sierra 1500 (2007-2016)
- Chevrolet Silverado 1500 (2007-2016)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- GMC Yukon (2007-2016)
- Chevrolet Tahoe (2007-2016)
- Cadillac Escalade (2007-2014)
