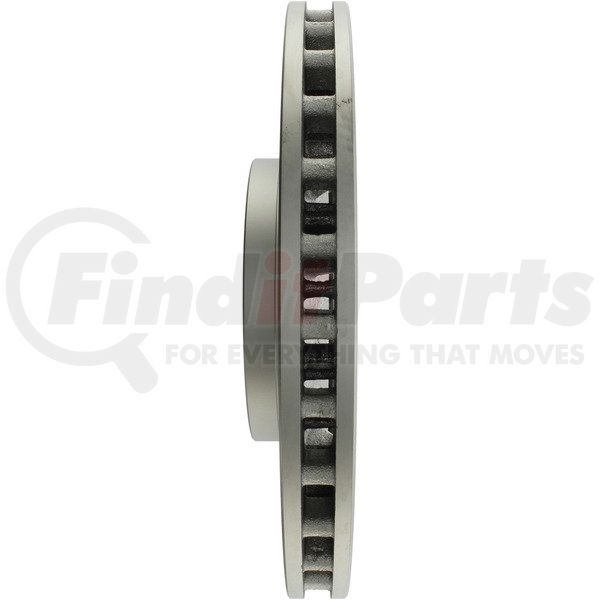

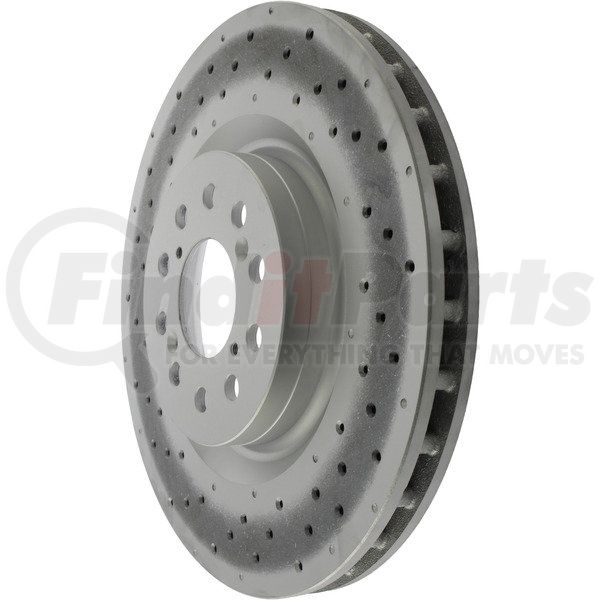

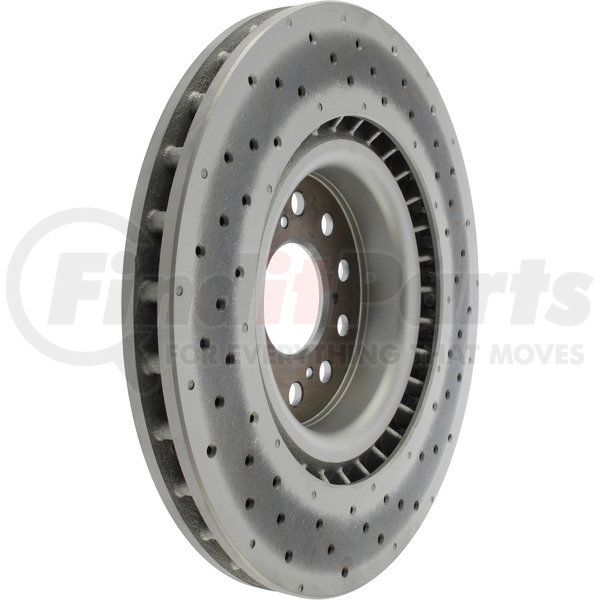

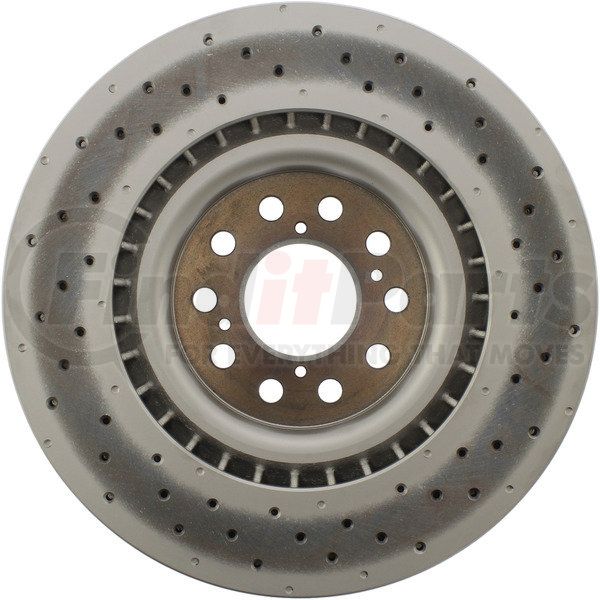

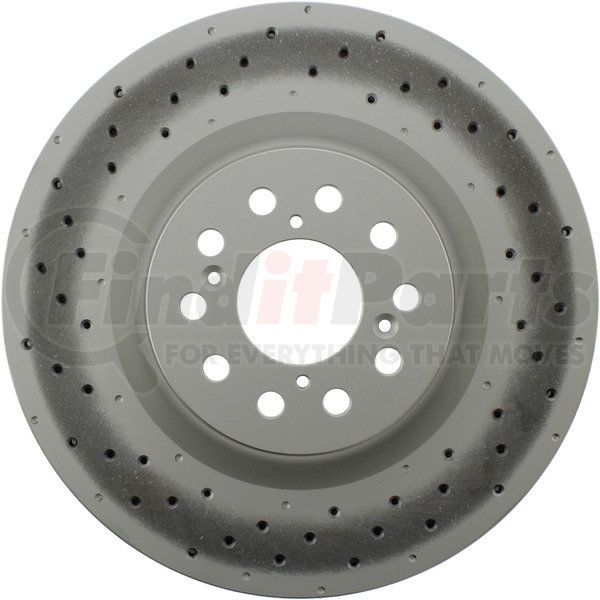

Centric 320.40098 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.580 |
| Weight [cntrc] Lbs | 25.500 |
| Vane Style [cntrc] | Pillar |
| OEM Vane Count [cntrc] | 93 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 9 |
| Hat Id [cntrc] In | 6.232 |
| Hat Id [cntrc] Mm | 158.300 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30.000 MM |
| Nominal Thickness | 1.260 IN |
| Nominal Thickness | 32.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 54.700 MM |
| Overall Height | 2.154 IN |
| Outside Diameter | 350.000 MM |
| Outside Diameter | 13.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70.000 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590425147 |
