(888) 312-8812 Login SignupSTOPTECH 126.66017SR Sport Slotted Brake Rotor, Front Right
Tap to view 4 more
$191.03
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
STOPTECH 126.66017SR Part Description
Manufacturer
Product Description

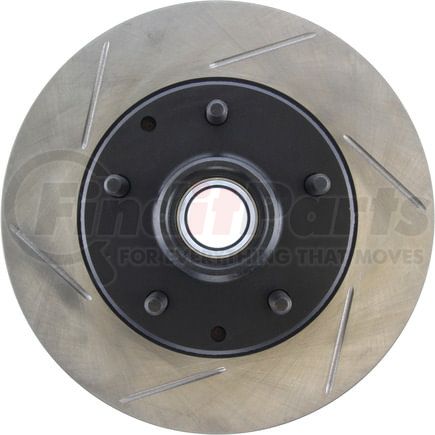

Sport Slotted Brake Rotor, Front Right
Application Summary
1995 - 1997 Chevrolet Blazer, 1991 - 2003 Chevrolet S10, 1991 - 1994 Chevrolet S10 Blazer, 1992 - 1997 GMC Jimmy, 1991 - 1991 GMC S15 Jimmy, 1991 - 2003 GMC Sonoma, 1996 - 2000 Isuzu Hombre
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Slotted for increased bite; improved looks and better performance
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
STOPTECH 126.66017SR Specifications
Product Attributes
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.500 MM |
| Nominal Thickness | 1.035 IN |
| Nominal Thickness | 26.300 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.470 IN |
| Stud Thread Diameter | 12.000 MM |
| Outside Diameter | 10.472 IN |
| Outside Diameter | 266.000 MM |
| Height | 4.311 IN |
| Height | 109.500 MM |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72.00 MM |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Mounting Bolt Hole Circle Diameter | 120.70 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Hub Hole/Whl Reg [cntrc] | 72 MM |
| Inner Bearing # [cntrc] | 410.91006 |
| Inner Seal # [cntrc] | 417.660 |
| Misc Holes [cntrc] | 2 |
| Outer Bearing # [cntrc] | 410.910034 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 9.320 KG |
| Weight [cntrc] | 20.500 LB |
| Disc Mounting | Hub & Rotor |
| Hub Hole Diameter | 72 MM |
| Inner Bearing | 410.91006 |
| Inner Seal | 417.660 |
| Misc Holes | 2 |
| Outer Bearing | 410.910034 |
| Vane Style | Straight |
| Weight | 9.320 KG |
| Weight | 20.500 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890207160 |
STOPTECH 126.66017SR Fits Vehicles
- GMC Sonoma (1991, 1994-2003)
- GMC S15 Jimmy (1991)
- GMC Jimmy (1992-1997)
- Chevrolet S10 (1994-2003)
- Chevrolet Blazer (1995-1997)
- Chevrolet S10 Blazer (1991-1994)
- Isuzu Hombre (1996-2000)
