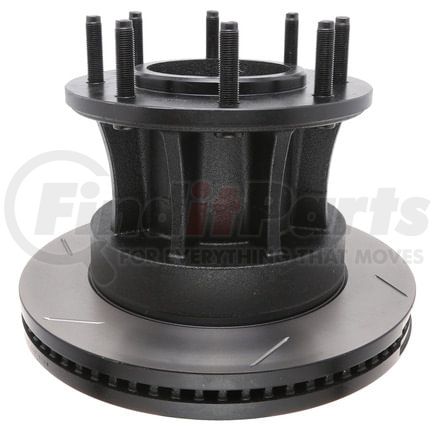

StopTech 126.65122SR - Sport Slotted Brake Rotor, Front Right
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
STOPTECH part description
Product Description
Sport Slotted Brake Rotor, Front Right
Application Summary
2007 - 2012 Ford F-350 Super Duty
Features & Benefits
- Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Slotted for increased bite; improved looks and better performance
Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor
Product Attributes
| Discard Thickness | 1.433 IN |
| Discard Thickness | 36.400 MM |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38.000 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.550 IN |
| Stud Thread Diameter | 14.000 MM |
| Outside Diameter | 13.661 IN |
| Outside Diameter | 347.000 MM |
| Height | 8.390 IN |
| Height | 213.100 MM |
| ABS Tone Ring Included | Yes |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 5.591 IN |
| Center Hole Diameter | 142.00 MM |
| Mounting Bolt Hole Circle Diameter | 7.874 IN |
| Mounting Bolt Hole Circle Diameter | 200.00 MM |
| Stud/Lug Hole Quantity | 8 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Hub Hole/Whl Reg [cntrc] | 142 MM |
| Misc Holes [cntrc] | 8 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 32.950 KG |
| Weight [cntrc] | 72.500 LB |
| Disc Mounting | Hub & Rotor |
| Hub Hole Diameter | 142 MM |
| Misc Holes | 8 |
| Vane Style | Straight |
| Weight | 32.950 KG |
| Weight | 72.500 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890629757 |
Fits Vehicles
- Ford F-350 Super Duty (2007-2012)
