DELPHI TC5159 Part Description
Manufacturer
Product Description

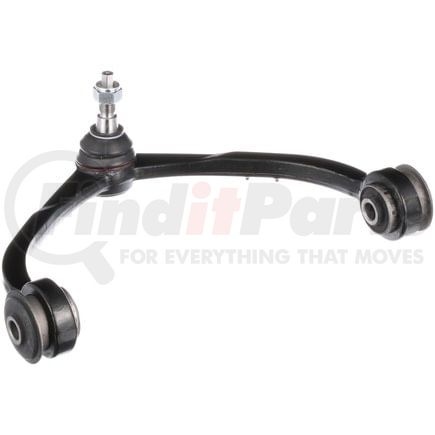

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC5159 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 7.283 IN |
| Control Arm Maximum Width | 185.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 3.780 IN |
| Ball Joint Stud Length | 96.00 MM |
| Control Arm Maximum Length | 14.370 IN |
| Control Arm Maximum Length | 365.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604289877 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5159 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7693 |
| DORMAN | 521-423, CB81006, CB81006PR |
| MEVOTECH | CMS25141, CTXMS25141 |
| MOOG | CK620006 |
| MOOG Chassis Products | RK620006 |
| Mitsubishi | 5285 5100AC, 5285 5100AD, 5285 5100AF |
| N/A | GS25141, 5285 5100AC, CB81006, 521-423, CTXMS25141, CMS25141, CK620006, 623.67, 5285 5100AB, 5285 5100AF, 52855 100AE, 5285 5100AD, 52855 100AA |
| TRW | JTC1587 |
DELPHI TC5159 Fits Vehicles
- Ram Dakota (2011)
- Mitsubishi Raider (2006-2009)
- Dodge Dakota (2005-2010)
