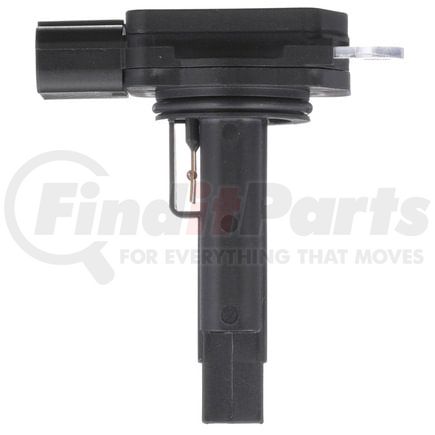

Delphi AF10425 - Mass Air Flow Sensor
$8099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Mass Air Flow Sensor
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 40 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 49.20 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 26.5 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.5 IN |
| Bolt Hole Center To Bolt Hole Center | 1.90 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 1 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604294413 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
Part Interchanges
- DENSO Auto Parts 197-6170
- Spectra Premium MA245
- Carquest MQ6220
- Richporter MA245
- BWD 221207
- Duralast DL-3017
- Duralast DL-3027
- CARDONE New 86-50068
- Honda 37980-R11-A01
- Honda 37980-R11-A02
- Honda 37980-R40-A01
- Honda 37980-RLF-003
- Honda 37980-RLF-013
- CARDONE Reman 74-50068
- Standard Motor Products MAS0315
- Standard Motor Products MF21207
- NAPA Reman Computers MAF650068
- NAPA Reman Computers XTP450068
- WAI MAF20189
- 214681
- MA1145
- 245-1195
- 5S13370
- MAS0360
- MF21207N
- MA1192
Fits Vehicles
- Acura NSX (2017-2021)
- Acura ILX (2013-2021)
- Honda Crosstour (2012-2015)
- Honda Civic (2012-2021)
- Honda CR-V (2010-2019)
- Acura TSX (2009-2014)
- Honda Accord (2008-2012)
