Name: SEALED POWER ENGINE PARTS H1525CP .50MM
SKU: h1525cp50mm
Price: 113.14 USD
Availability: OutOfStock

SEALED POWER ENGINE PARTS part description

Product Description

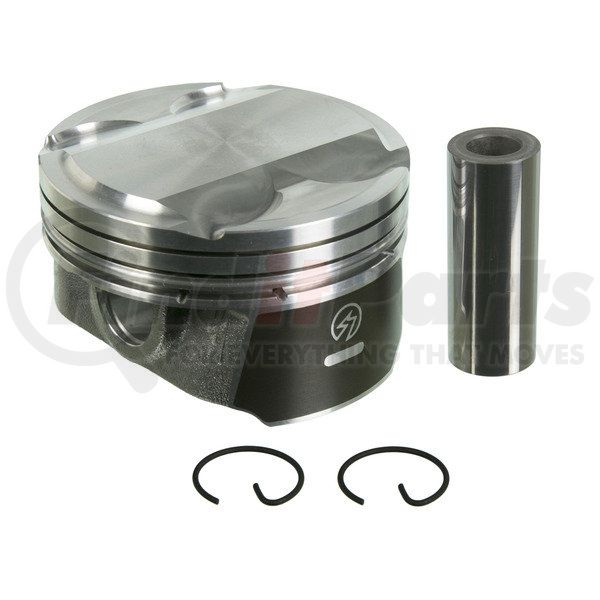

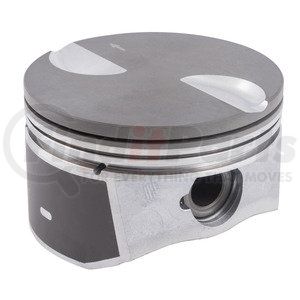

Engine Piston Set

Application Summary

Ford Edge 3.5L V6 2013-2016; Explorer 3.5L V6 2013-2016; F150 3.5L V6 2013-2016; Flex 3.5L V6 2013-2016; Police 3.5L V6 2013-2016; Taurus 3.5L V6 2013-2016

Features & Benefits

Hypereutectic piston cast with FM S2N proprietary alloy
Pistón de fundición hipereutéctica con aleación patentada FM S2N
Piston eutectique coulé avec un alliage propriétaire FM S2N
Duroshield® graphite coated piston helps prevent scuffing of skirt and cylinder wall
El pistón con recubrimiento de grafito Duroshield® ayuda a evitar las rozaduras del faldón y la pared del cilindro
Piston revêtu de graphite Duroshield® pour éviter les éraflures de la jupe et de la paroi du cylindre
Up-tilt ring grooves to improve piston-to-ring side sealing, providing exceptional blow-by control, improved efficiency and better economy
Ranuras de anillo inclinadas hacia arriba para mejorar el sellado lateral del pistón al anillo, lo que brinda un control de fuga de gases excepcional, mayor eficiencia y mejor economía
Les rainures annulaires sont inclinées vers le haut pour améliorer l'étanchéité entre le piston et les bagues, ce qui permet un contrôle pour détecter une perte de gaz dans le carter, une meilleure efficacité et une meilleure économie
Ultra precise pin bores allow total flexibility with precision-machined lube slots ensuring controlled lubrication tolerances with either pin installation methods
Los orificios ultraprecisos del pasador permiten una flexibilidad total con ranuras de lubricación mecanizadas con precisión que garantizan tolerancias de lubricación controladas con cualquiera de los métodos de instalación de pasadores
Les alésages ultra précis des goupilles permettent une flexibilité totale avec des fentes de lubrification usinées avec précision, assurant des tolérances de lubrification contrôlées avec les deux méthodes d'installation des goupilles

Product Attributes

Oversized	Yes
Top Compression Ring Thickness	1.50 MM
Second Compression Ring Thickness	1.20 MM
Piston Pin Outside Diameter	23.00 MM
Assembly Lubricant Included	No
Bore Diameter	92.50 MM
Piston Material	Hypereutectic
9607	31.25 MM
Oversized Amount	0.50 MM
Part Description	Engine Piston

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (Schedule B)	8409915085
Harmonized Tariff Code (HTS)	8409915085
UPC	00019826219923

Sealed Power® supplies the industry with application-specific engine components, including pistons, engine bearings, piston rings, oil pumps, and lifters. These replacement parts are crafted from automotive experts' product development efforts and commitment to putting only the best on the streets and highways. The engineers behind Sealed Power products design and evaluate these engine parts to provide solutions for repowering engines due to wear. Backed by many years of industry experience and expertise, Sealed Power offers components that deliver unparalleled performance and reliability. All Sealed Power Engine Parts meet the industry's highest standards for product quality. This is what makes Sealed Power the professional's brand of choice when it comes to engine parts.
