MSD 8203 Part Description
Manufacturer
Product Description

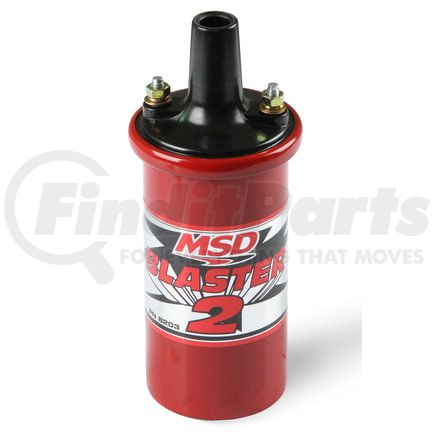

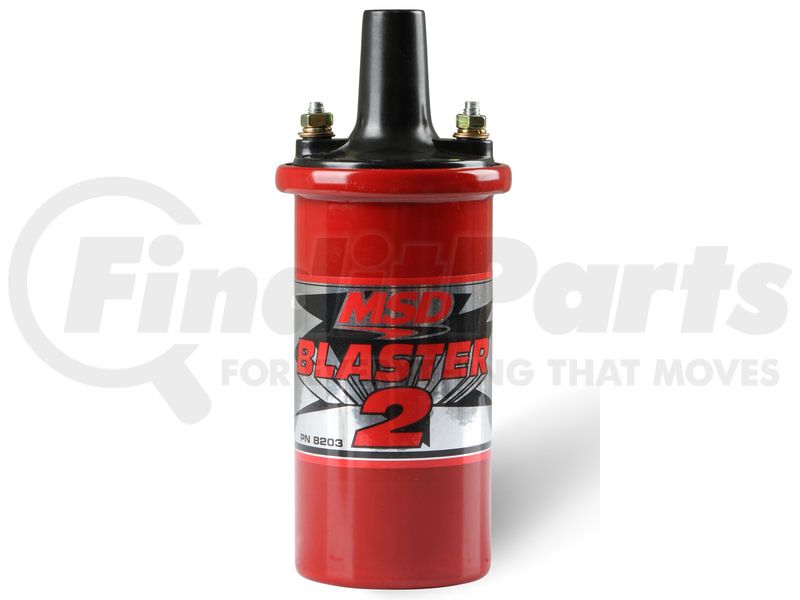

MSD Ignition Coil - Blaster 2 Series - Ballast Resistor - Red
Features & Benefits
- MSD Red metal canister is filled with a premium grade oil for cooling
- Improved output coil for stock points or electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series
- 100:1 turns ratio and lower primary resistance produce high voltage output
- CARB E.O. Approved

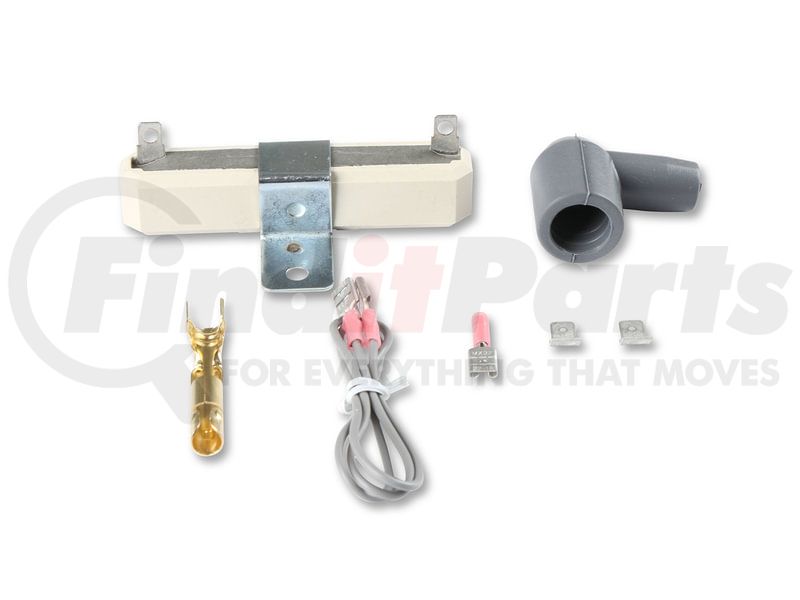

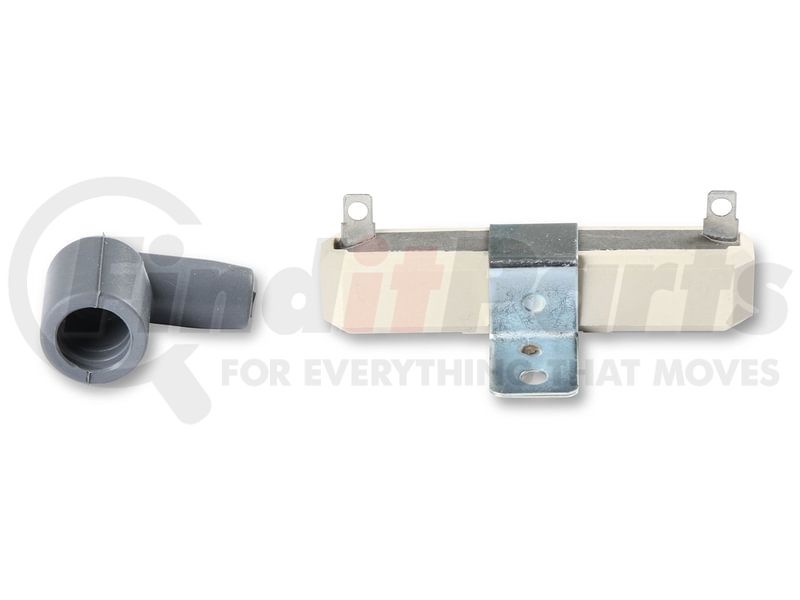

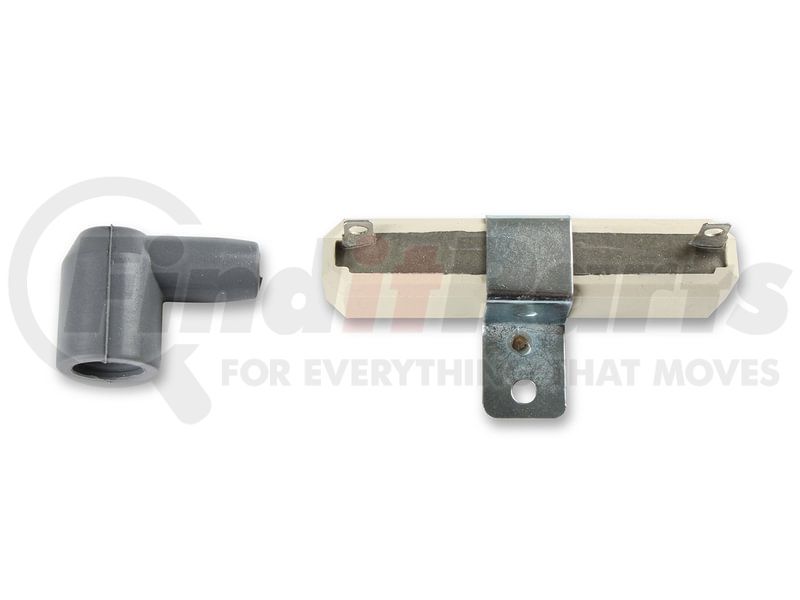

- Supplied with two spark plug wire boots, terminals and a ballast resistor (required if used with stock points ignition)
CARB EO: D-40-37
MSD 8203 Specifications
Product Attributes
| Brand | MSD |
| Category | Ignition |
| Emission Code | 1 |
| Inductance (mH) | 8 |
| Maximum Voltage | 45,000 |
| Part Type | Ignition Coil |
| Peak Current | 140 4K |
| Primary Resistance | 0.7 82 |
| Product Type | Coil |
| Secondary Resistance | 4.5K 82 |
| Spark Duration | 0.35 MESC |
| Sub Category | Ignition Coil |
| Turns Ratio | 4.17 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
Additional Information
| Original Supplier | CN |
| Warranty Special | Manufacturer's Limited 1 Year Warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Harmonized Tariff Code (HTS) | 8511300080 |
| NAFTA Preference Criterion Code | B |
| UPC | 00085132082032 |
MSD 8203 Cross References
| Brand | Part Number |
|---|---|
| STANDARD IGNITION | FD471 |
