National Seals 710954 - National 710954 Transfer Case Output Shaft Seal
- Part Number
- 710954
- Manufacturer
- NATIONAL SEALS
- Description
-

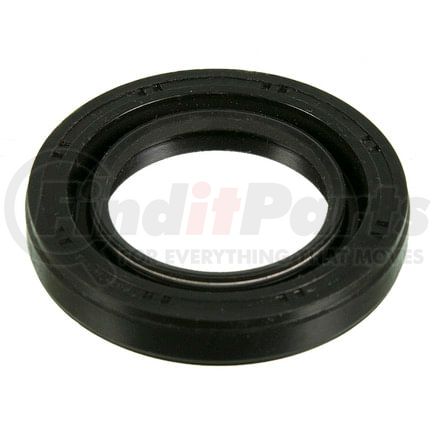

National 710954 Transfer Case Output Shaft Seal
details
$1099
MSRP: $14.99
Save: $4.00
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NATIONAL SEALS part description
Product Description
Transfer Case Output Shaft Seal
Application Summary
2010-2019 Lexus RX350 (Right) (Drive: AWD / Qualifier: with Aisin MF1A Transfer Case, 1 Speed); 2010-2019 Lexus RX450h (Right) (Drive: AWD); 2014-2019 Toyota Highlander (Right) (Drive: AWD / Qualifier: with Aisin MF1A Transfer Case, 1 Speed); 2009-2013 Toyota Matrix (Right) (Drive: AWD); 2011-2019 Toyota Sienna (Right) (Drive: AWD / Qualifier: with Aisin MF1A Transfer Case, 1 Speed); 2009-2016 Toyota Venza (Right) (Drive: AWD)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -20°F to 300°F / -29°C to 49°C
- Temperature range: -20degF to 300degF / -29degC to 49degC
- Resistance to EP lubricants
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.417 IN |
| Inside Diameter | 36.000 MM |
| Outside Diameter | 2.331 IN |
| Outside Diameter | 59.200 MM |
| Width | 0.394 in |
| Width | 10.000 MM |
| Material | Polyacrylate |
| Helix Type | Clockwise-Spiral Lip Design |
| Part Description | Oil Seal |
| Sealing Material | Polyacrylate |
| Series | 710900 |
| Thickness | 0.394 IN |
| Thickness | 10.000 MM |
| Type | # |
| Unit of Dimension | Metric |
| Housing Bore | 2.323 in |
| Housing Bore | 59.000 MM |
| Shaft Diameter | 1.417 IN |
| Shaft Diameter | 36.000 MM |
| Seal Type | Seal |
| Shaft Diameter | 36.000 MM |
| Housing Bore | 59.000 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826209412 |
Part Interchanges
Fits Vehicles
- Toyota Venza (2009-2016)
- Toyota Highlander (2014-2019)
- Toyota Sienna (2011-2019)
- Lexus RX450h (2010-2019)
- Lexus RX350 (2010-2019)
- Toyota Matrix (2009-2013)
