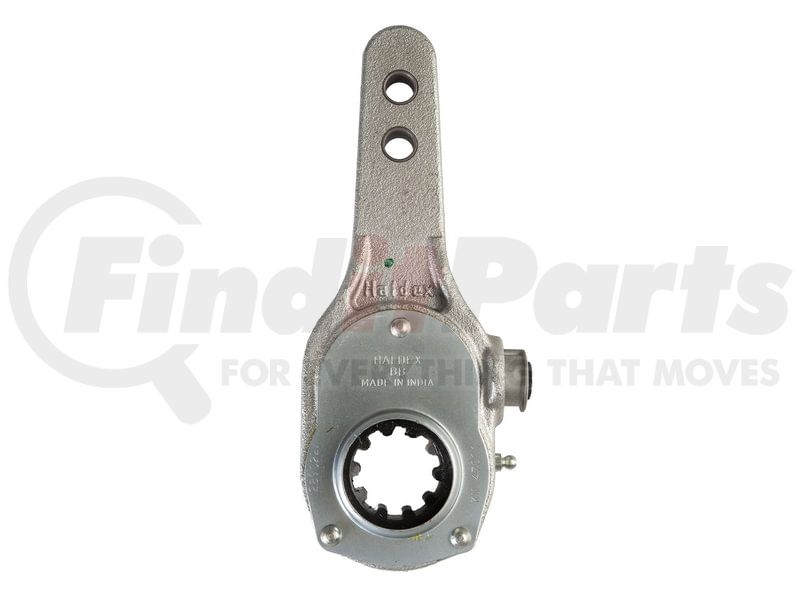

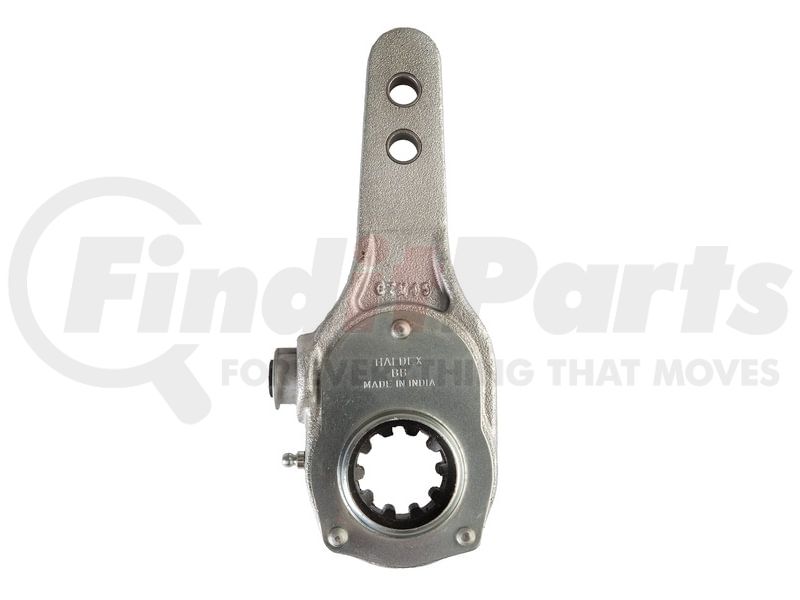

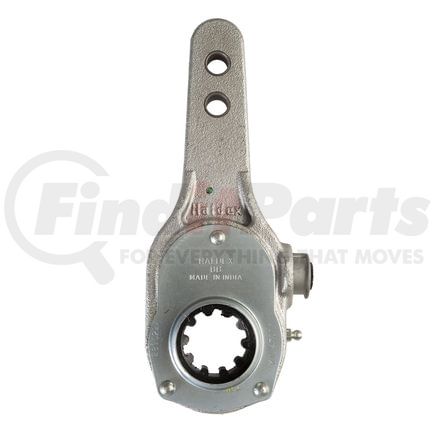

(888) 312-8812 Login SignupHALDEX KN47011 Air Brake Manual Slack Adjuster - 1-1/2"-10 Spline, 5.5 in. Arm Length, 6.5 Offset
Tap to view 1 more
$5949
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
HALDEX KN47011 Part Description
Manufacturer
Product Description
Manual Brake Adjuster Arm Length 5.5, 6.5 Offset
Application Summary
BUSHING NUMBER - 45210129. Notes: Replaces Part Number KN52110, Standard
Features & Benefits
- Made of forged steel for superior durability
- With press-out arm hole bushings and can accommodate up to 26,000 inch lbs.
- Permanently lubricated for maximum efficiency
- Designed with a positive locking mechanism that is corrosion resistant
- Offers superior rust protection since assemblies are plated
- Product comes with zerk fitting for optional lubrication
- Built to last for years to come
Haldex Air Brake Manual Slack Adjuster
Prevent costly downtime due to a faulty manual brake adjuster—replace it at once with the Haldex air brake manual slack adjuster. This straight arm adjuster is made to meet or exceed OEM standards to ensure the highest quality at a competitive price.
HALDEX KN47011 Specifications
Product Attributes
| Arm Length | 5.5 in., 6.5 in. |
| Body Angle | 0 DD |
| Freight Class | 70 |
| Offset | 0 in. |
| Pin Diameter | 1/2 in. |
| Spline Diameter | 1-1/2 in. |
| Spline Quantity | 10 |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Harmonized Tariff Code (HTS) | 8716905060 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=All Other Tour Bus, Intercity Transit Products Not Listed(8). 12MO,100,000 MI= All Other New Products Not Listed(13), City Transit Oper.(9) (All New Products), Friction Products(7), New Clutches(6). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653011974 |
| VMRS Code | 013002028 |
HALDEX KN47011 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | M457, 9032757, H2020A, L196, 1850259, 277959, HSA-4924, 1006743, 18510, 4E0094, CA1202, P-66565, 2001607, D9HZ2315A, 1312340, A-1989, 110831R91, 90023358, 349805, A69-3275-G-501, 61130092, 25QD336P56, 6814200438, 2029, 62015, U55 KN47011, 5-201, S-9523, 2869, S2020A, 52210, 76401-0106, WAKN47011, CS47012, 924002, RB278321, OTR47011, 2020 |
| BWP | M457 |
| Euclid | 9032757, E-940 |
| Hercules | H2020A |
| Leland | L196, L845 |
| Midland | 1850259, 18510, 2027, KN47010, KN47011, KN47012, KN52110, MPN21153C, N 21127BG, N 21146C, N21027AC, N21027AH, N21027AL, N21027AX, N21127AB, N21127AC, N21127AH, N21127AL, N21127AR, N21127AX, N21127BC, N21127BD, N21127BG, N21127BH, N21127BN, N21127MC, N21136C, N21136L, N21136M, N21136N, N21136S, N21141AB, N21141AC, N21141AL, N21141AR, N21146B, N21146C, N21146D, N21146K, N21146N, N21146P, N21146T, N21150B, N21153AF, N21153AP, N21153AT, N21153AW, N21153AZ, N21153C, N21153E, N21153EA, N21153EB, N21153F, N21153L, N21153N, N21153PC, N21153PD, N21153T, N21157B, N21157C, N21157D, N21157G, N21157K, N21157N, N21157P, N21163C, N21163E, N21163F, N21163L, N21169C, N21169L, N21169P, N21169T, N21172H, VN21153N, ZZKN47011 |
| Bendix | 277959, 278016, 278321, 278326 |
| PAI | HSA-4924 |
| Eaton | 1006743, 1008758, 1008803, 506833, 807250, 807254, 807549, 807578, 807630, 812037, 812236, 82074 |
| Berg Manufacturing | 18510, 18511 |
| Caterpillar | 4E0094 |
| Crewson Brunner | CA1202 |
| Dana Commercial Vehicle Service Parts | P-66565 |
| GMC | 2001607 |
| Ford | D9HZ2315A, D9HZ2315AA |
| Oshkosh | 1312340 |
| Turner | A-1989 |
| Navistar | 110831R91, 1685259C1, 168525C91, 486304C1, 572421C91 |
| Ottawa | 90023358 |
| Paccar Parts | 349805 |
| Rockwell International | A69-3275-G-501, A85-3275G501, R822001, R824001 |
| Thomas Built Buses | 61130092 |
| Mack | 25QD336P56 |
| Freightliner | 6814200438, 6814201338 |
| Tectran | 2029, 2029-10 |
| Di-Pro Inc. | 62015 |
| Ryder | U55 KN47011 |
| Batco | 5-201 |
| S&S Truck Parts | S-9523 |
| Silver Eagle Mfg | 2869 |
| Sirco Industries | S2020A |
| Tramec | 52210 |
| Volvo GM Heavy Truck | 76401-0106 |
| World American | WAKN47011 |
| NAPA | CS47012 |
| Wagner | 924002 |
| RANGER BRAKE | RB278321 |
| OTR | OTR47011 |
| Tramec Sloan | 2020, 2020R, 2023, 2027, 2027R, 2042, 2085, 2089, 2095 |
| EUCLID | 9032757, E-940 |
| LELAND | L196, L845 |
| MIDLAND | 1850259, 18510, 2027, KN47010, KN47011, KN47012, KN52110, MPN21153C, N 21127BG, N 21146C, N21027AC, N21027AH, N21027AL, N21027AX, N21127AB, N21127AC, N21127AH, N21127AL, N21127AR, N21127AX, N21127BC, N21127BD, N21127BG, N21127BH, N21127BN, N21127MC, N21136C, N21136L, N21136M, N21136N, N21136S, N21141AB, N21141AC, N21141AL, N21141AR, N21146B, N21146C, N21146D, N21146K, N21146N, N21146P, N21146T, N21150B, N21153AF, N21153AP, N21153AT, N21153AW, N21153AZ, N21153C, N21153E, N21153EA, N21153EB, N21153F, N21153L, N21153N, N21153PC, N21153PD, N21153T, N21157B, N21157C, N21157D, N21157G, N21157K, N21157N, N21157P, N21163C, N21163E, N21163F, N21163L, N21169C, N21169L, N21169P, N21169T, N21172H, VN21153N, ZZKN47011 |
| BENDIX | 277959, 278016, 278321, 278326 |
| BERG | 18510, 18511 |
| CREWSON BRUNNER | CA1202 |
| DANA | P-66565 |
| FORD | D9HZ2315A, D9HZ2315AA |
| NAVISTAR | 110831R91, 1685259C1, 168525C91, 486304C1, 572421C91 |
| ROCKWELL | A69-3275-G-501, A85-3275G501, R822001, R824001 |
| FREIGHTLINER | 6814200438, 6814201338 |
| DI-PRO | 62015 |
| RYDER FLEET PROD. | U55 KN47011 |
| BATCO | 5-201 |
| Silver Eagel Mfg | 2869 |
| TRAMEC | 52210 |
| WORLD AMERICAN | WAKN47011 |
| WAGNER | 924002 |
| MACK | 25QD336P56 |
HALDEX KN47011 Cross References
We have 35 alternatives for the KN47011 by HALDEX:
- 013-002-028
- HDXKN47011
- HALDEX KN47011M1D
- MERITOR R824001
- MERITOR C473275G501
- AUTOMANN 134.1031
- BENDIX 278321
- BENDIX 278326
- BENDIX 278326N
- BWP M-457
- CREWSON CA1201
- DAYTON 05-201
- DAYTON 05-201EQ
- EUCLID E-940
- EUCLID E-940S
- EUCLID E-11743
- EUCLID E-940HD
- EUCLID E-940-BK
- EUCLID E-940S-BK
- HALDEX KN47011
- HALDEX N21153C
- HALDEX N21153F
- HALDEX N21153P
- HALDEX N21153T
- LELAND L845
- LELAND A7044
- LELAND L845EC
- MERITOR R822001
- MERITOR R823001
- MERITOR A693275G501
- MIDLAND KN47011
- SPICER 10-354
- SPICER 10-366
- SPICER 10-354BULK
- BENDIX 278016N
HALDEX KN47011 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
