(888) 312-8812 Login SignupHALDEX GP3030K TYPE 3030 GOLD
$9399
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
HALDEX GP3030K Part Description
Manufacturer
Product Description

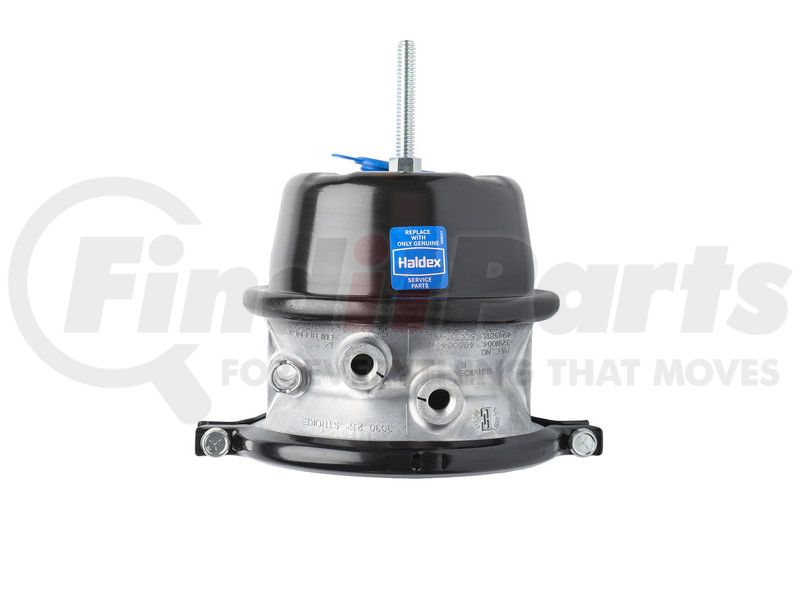

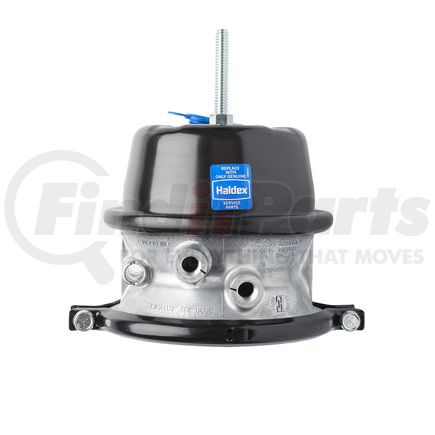

Brake Chamber GoldSeal 3030Gp Standard Stroke
Application Summary
Piggyback Kit - Size 3030
Features & Benefits
- Uses superior power spring technology for unparalleled force output consistency
- Has powder-coated housing that effectively resists fatigue and corrosion
- Comes with two O-rings for positive sealing and plastic bearings for extended life
- World-class diaphragm that’s made of high-quality rubber compound for superior flexibility and heat- and cold-resistance
- With rugged powder-coated service housing for corrosion protection
- Orange Alert® Stroke Indicator effectively informs the user if brake maintenance is required
- Self-piloting dust shield extends air brake system lifespan
- Comes in a variety of sizes to fit all drum brake applications
Haldex GoldSeal Air Brake Spring Brake
Equip your vehicle with a high-quality Haldex GoldSeal air brake spring brake. This product is the only truly sealed double diaphragm spring brake specifically designed for heavy duty applications.
HALDEX GP3030K Specifications
Product Attributes
| Freight Class | 70 |
| Piggyback Length | 6.8 in. |
| Series | GoldSeal |
| Service Chamber Size | 30/30 |
| Service Clampband Size | 10.2 in. |
| Spring Housing Flange Size | 8.3 in. |
| Stroke Length | 2.5 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412310080 |
| Harmonized Tariff Code (HTS) | 8412310080 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | See Haldex Aftermarket Product warranty Policy (L20221W).pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653298214 |
| VMRS Code | 013004001 |
HALDEX GP3030K Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | MQ48300, NT3030STD-KIT, 1393030004, 18560, RBPBPS-3030K, 343-0008, V42 3430008, WA3030PKIT, OTR3030PBK |
| Midland | MQ48300 |
| Bendix | NT3030STD-KIT |
| Anchorloc | 1393030004, 3030069, 3030GP-KIT, GP3030K |
| Di-Pro Inc. | 18560 |
| Great Dane Trailers | RBPBPS-3030K |
| MGM Brakes | 343-0008, 3430008, 3430008X, 3430808, 3430808X |
| Ryder | V42 3430008, V42 3430008X |
| World American | WA3030PKIT |
| OTR | OTR3030PBK |
| MIDLAND | MQ48300 |
| BENDIX | NT3030STD-KIT |
| ANCHORLOK | 1393030004, 3030069, 3030GP-KIT, GP3030K |
| DI-PRO | 18560 |
| RYDER FLEET PROD. | V42 3430008, V42 3430008X |
| WORLD AMERICAN | WA3030PKIT |
HALDEX GP3030K Cross References
We have 3 alternatives for the GP3030K by HALDEX:
HALDEX GP3030K Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX GP3030K Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
