Name: Reach Cooling 61-1015 KENWORTH T600- T800- W900 95-07
SKU: 611015
Price: 721.49 USD
Availability: InStock

REACH COOLING part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

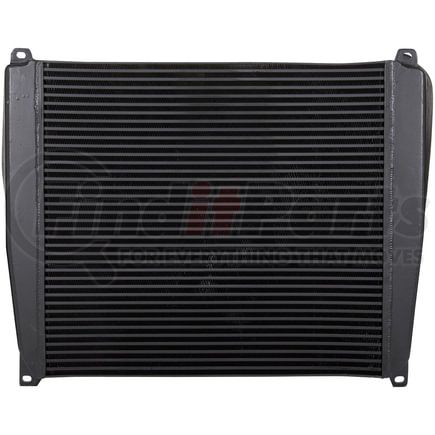

Charge Air Cooler

Application Summary

Kenworth:87-89 K100E/99-2006 T2000/96-2004 T300/89-96 T400/86-2007 T600A/87-2007 T800/86-2007 W900

Features & Benefits

Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.

Product Attributes

Inlet Header Length	27 1/4 in
Outlet Header Width	2 9/16 in
Core Height	27 IN
Core Thickness	2 3/16 IN
Inlet Outside Diameter	3 15/16 IN
Inlet Location	Upper Left
Core Length	28 9/16 IN
Outlet Outside Diameter	4 1/16 IN
Outlet Header Length	692 mm
Inlet Header Width	65 mm
Core Row Quantity	1
Outlet Location	Center Right
